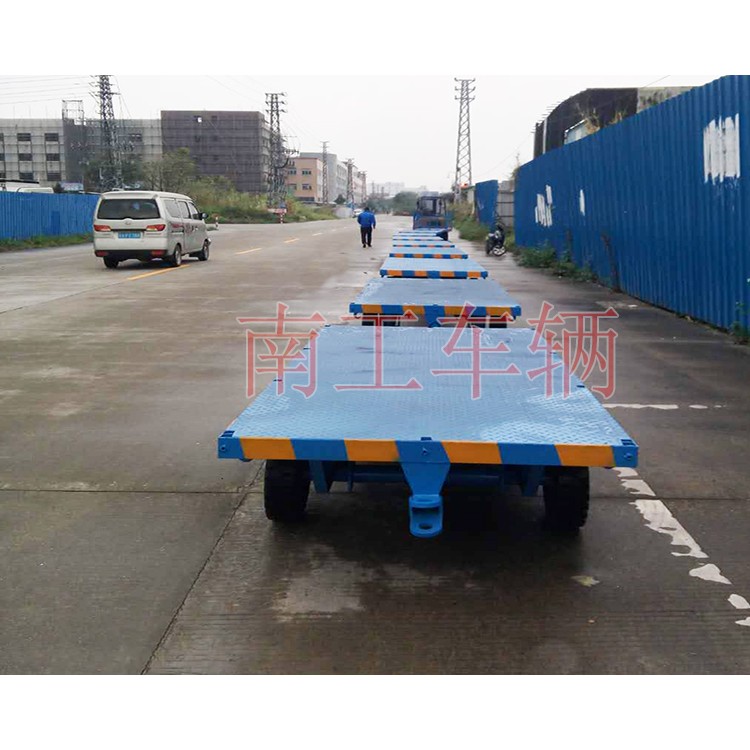

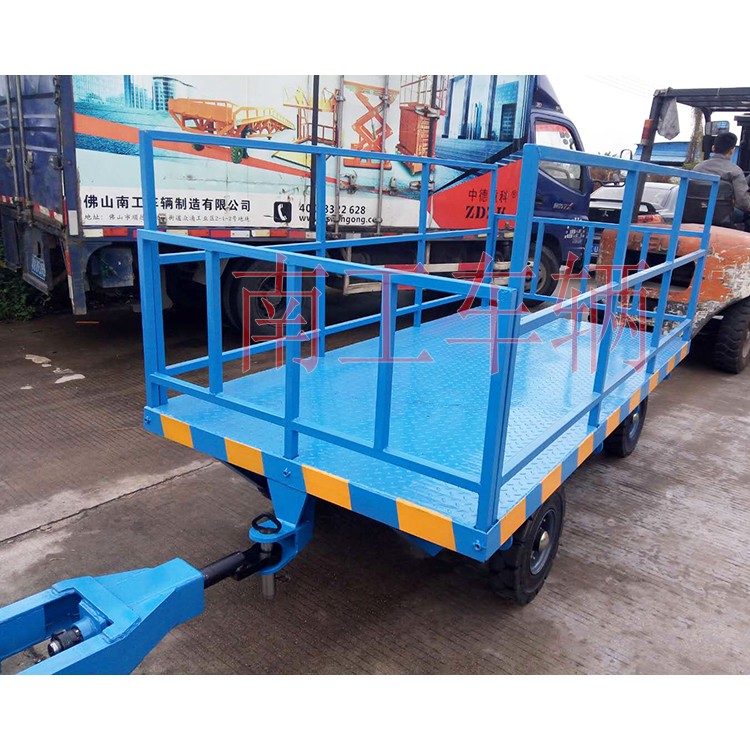

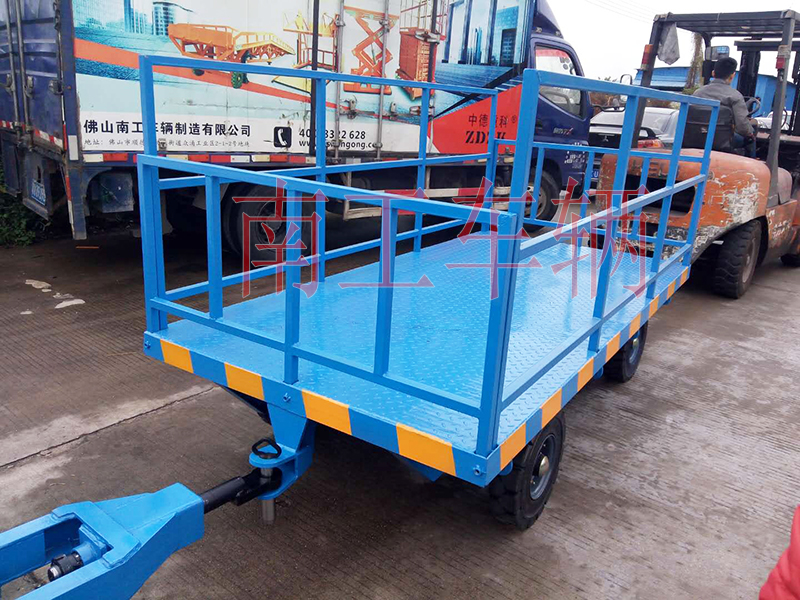

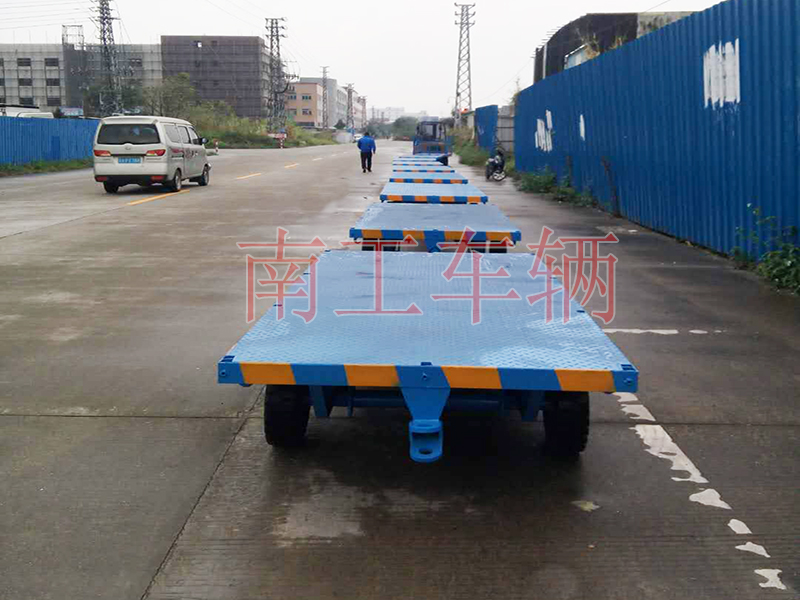

3-ton high-mounted guardrail flatbed trailer set
Brand: Southwork, Model: NGTT03F-12/26-4S, Load Capacity: 3T, Plate Size: 2.6*1.25 meters, Color: Dongfeng Blue, Net Weight: 800KG.
Detailed specifications for the 3-ton flatbed trailer set with guardrail:
1. This vehicle has a carrying capacity of 3 tons, with a cargo area measuring 2.6 meters in length, 1.25 meters in width, and approximately 0.6 meters in height. The main structure is constructed with No. 8 steel beams, featuring a welded composite beam for the main girder. The deck is covered with 4mm patterned steel plates. Both the front and rear of the vehicle are equipped with 600mm high, removable guardrails, while the sides are fitted with 900mm high, removable guardrails.
2. The tires consist of four 500-8 solid tires, each capable of carrying 1.2 tons, with a two-axle design and a speed limit of 15 KM/H.
3. The turntable features a standard 3-ton model with a 180-degree rotation, equipped with a 3-ton standard tow frame, which can be easily adjusted for up and down fixation. Simple adjustments to the tow frame allow for easy changes between different vehicles. A connecting device at the rear of the vehicle ensures continuous towing capability.
4. Rigidly connected chassis, minimum turning radius of 180 degrees for原地转弯.
Color: Isuzu Blue with surrounding yellow warning stripes
Each unit includes one dedicated connector and one plug.
3-ton high-mounted guardrail flatbed trailer, professionally customized by Nangong Vehicle, high production efficiency, safe, sturdy, and durable trailer, widely available worldwide!
Application: Suitable for short-distance round-trip loading and unloading tools in workshops, airports, ports, stations, construction sites, etc.
