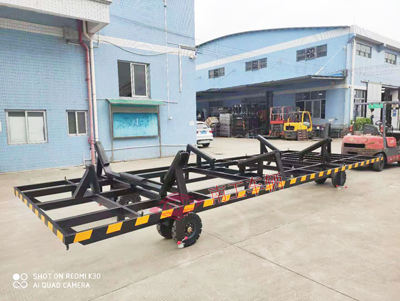

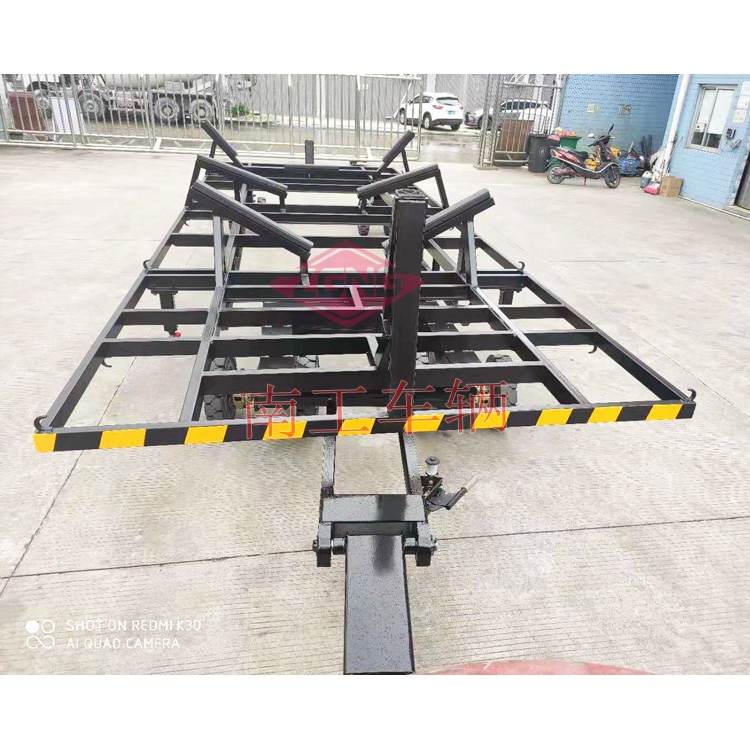

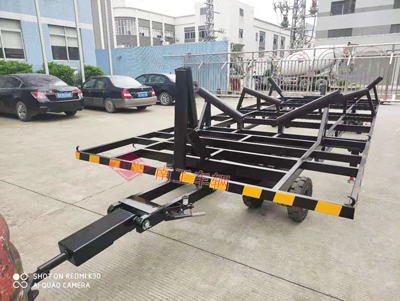

Brand: NanGong, Model:NGTT06CBS-27/65-8S, Load Capacity: 6 tons, Dimensions: 6.5*2.7 meters, Color: Black, Net Weight:2 tons
1. The vehicle's carrying capacity is:6tons, platform architecture adopted10#Type steel sub-beam8#Welded from section steel, this vehicle is a frame structure without a floorboard, with the tabletop width approximately2.7Rice, approximately 1 meter in length6.5Rice, height approximately0.66Meters.
2. This vehicle comes with8Model No.500-8Solid tires, single wheel load1.2TRated Speed15KM/H。
3. Front two wheels are equipped with manual hydraulic brakes for parking brake functionality.
4. The vehicle is equipped with spring dampers on both the front and rear axles, reducing road vibrations.
5. Buffered height-adjustable tow bar, effectively reducing the impact force between the trailer and the towing vehicle during travel.
6. Each trailer is equipped with a set of lifting guide positioning blocks at both the front and rear, facilitating easier placement in the correct position during ship loading.
7. Tow bar side-mounted accessories6Three sets of hull support brackets, with each side having three, all limiters are equipped with rubber protection to prevent damage to the hull.
8. The vehicle is designed with a floating concept, capable of automatically adjusting the body level and tire load force balance according to the road smoothness.
9. Steering mechanism is for6TTurntable-type machine turntable assembly, rotation angle of180Degree, facilitating easy turns at small radii.
10. Each side of the body is welded4UnitUForged casting couplings are easy to tie down.
Color: Black (marine paint).
6T Boat Trailer Yacht Trailer Nangong Vehicle Short-Haul Logistics Transportation Manufacturer, offering long-term non-standard customization of various trailers, capable of designing according to customer requirements. Direct selling factory.
Application ScenarioBoat trailer suitable for shipyards, docks, amusement parks, and vessel transportation.
