Brand: Nangong, Model: NGTT30S-26/90-8S, Load Capacity: 30 tons, Deck Size: 9*2.6 meters, Net Weight: 5560KG, Color: Orange
30-ton Heavy Duty Non-Driven Trailer Flatbed Detailed Specifications:

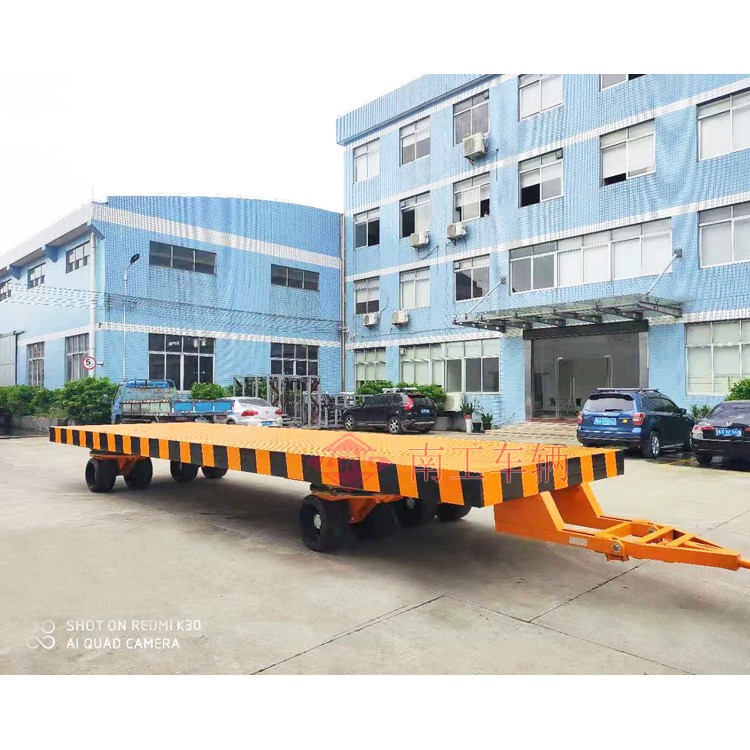

The flatbed trailer features a single-section design with a carrying capacity of 30 tons. The main frame of the platform is constructed with 25# steel beams, while the auxiliary beams are made of 14# steel beams. The width is 2.6 meters, the length is 9 meters, and the height is approximately 0.9 meters.
2. This vehicle comes with 8 maintenance-free tires, model 22*12-16 solid tires with pressure fit, each wheel can carry up to 5 tons, and has a driving speed of 15 km/h.
3. The vehicle axles feature a swing-type rigid suspension, allowing the national bridge to automatically adjust the tire load points based on road smoothness, ensuring balanced tire force distribution.
4. The steering mechanism consists of 4 independent rotation assemblies, each capable of carrying a load of approximately (10 tons) with a rotation angle of 360 degrees, facilitating ease of maneuvering in tight radii.
Each set of return mechanism can be independently limited, and operation is simple, just need to pull out or insert the limiting pin. If you need to use a flatbed truck separately, just secure the limiting pins on the two rear wheels.

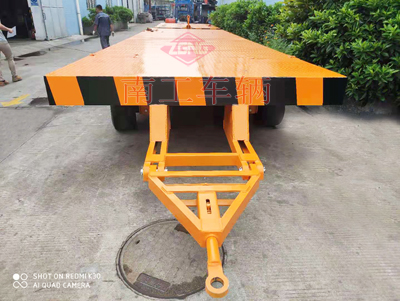

6. Equipped with a double spring suspension for the towing frame, effectively mitigating the impact force between the tow vehicle and flatbed during acceleration or braking, preventing component damage and cargo injury.
7. Color: Orange, with alternating orange and black warning stripes around.
30-ton heavy-duty non-powered trailer flatbed, customized by Nangong, with a frame lifespan of 20 years, ideal for short-distance transportation.
Application ScenarioUsed for transshipment of heavy products such as metallurgy, molds, and machinery; high load capacity, low cost, and long service life.
