Brand: Nangong, Model: NGPLA18-12/35, Load Capacity: 1.8 tons, Table Size: 3.5*1.2 meters, Net Weight: 0.5 tons, Color: Blue

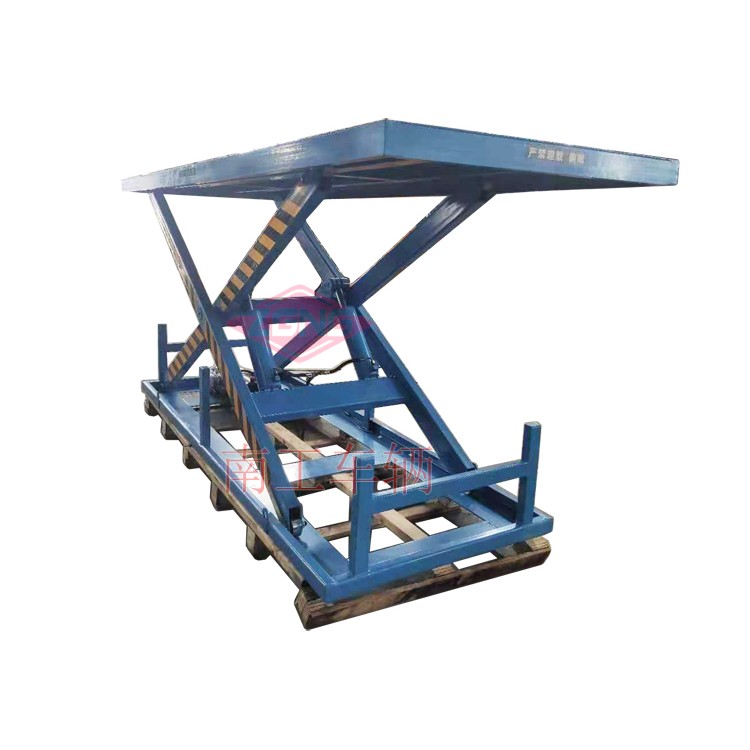

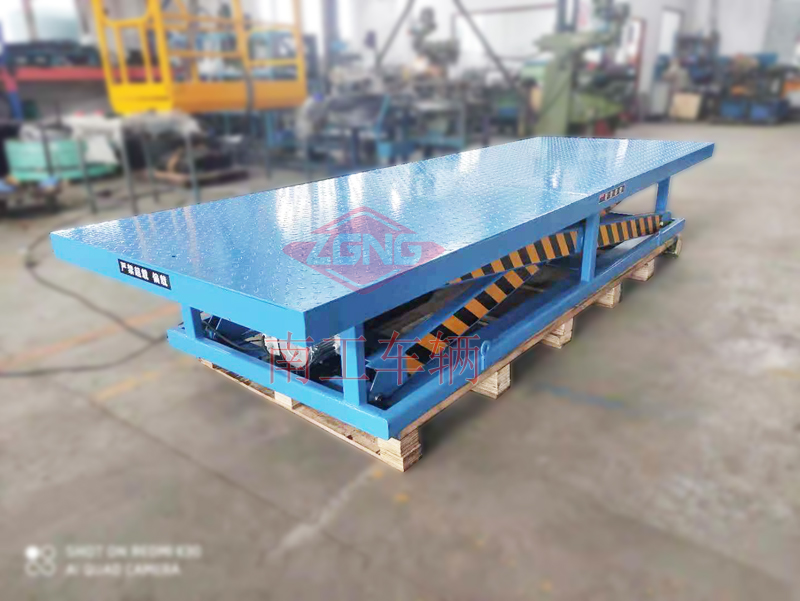

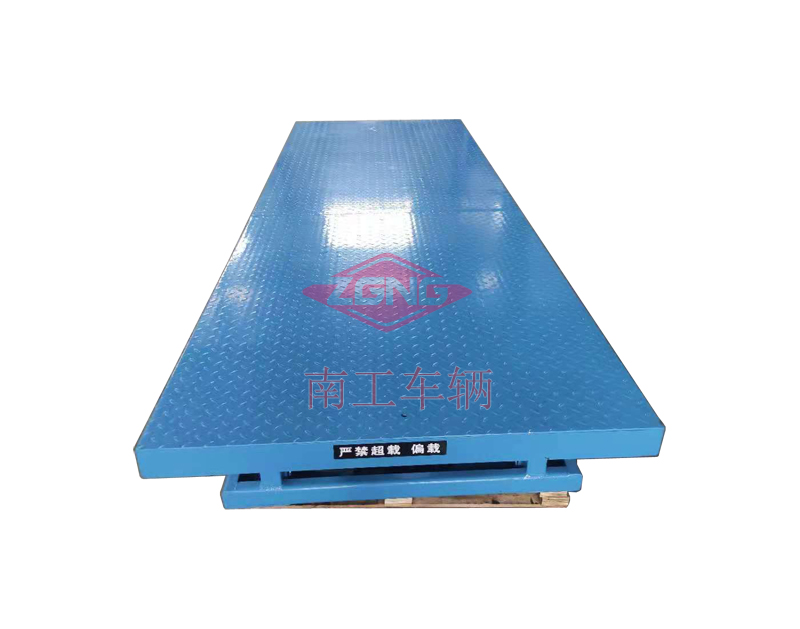

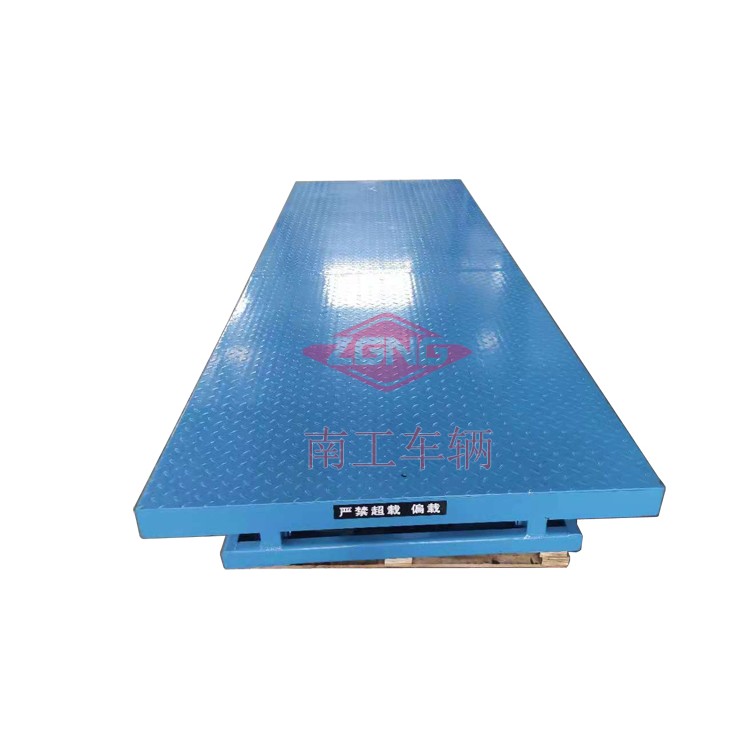

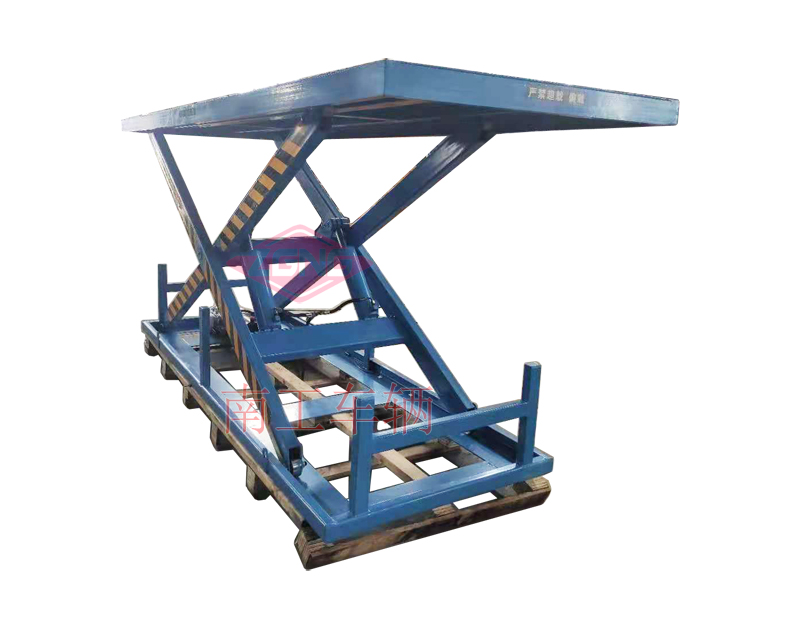

1.8-ton Fixed Electric Scissor Lift Detailed Specifications:
Rated Load: 1800KG; Table Size: 3500*1200 (6MM board + No.8 channel steel frame)
Low height: 500MM; Height: 1500MM (travel distance: 1000MM)
Cutting dimensions: 120*60*6MM rectangular tube; Quantity: Single leg.
Bore: 115MM; Cylinder Quantity: 2 pcs;
Motor: 3KW/380V; Pump Station Location: Built-in
Electrical Appliances: Zhejiang Chint; Sealing Parts: Japan NOK
Control Method: Push-button control; Surface Treatment: Powder coating, color yellow (剪刀 black);
Supplied with a hand-held button control box (cable length: 3 meters).
1.8-ton Fixed Electric Scissor Lift for Nangong Vehicles, non-standard customized. Load capacity and platform size can be produced according to requirements. Factory direct sales, high load capacity, good quality, fast delivery.
Application ScenarioUsed in workshop production, wharf loading, and other cargo transportation sites, they are typically installed in pits, which are the foundation for ensuring the safe operation of hydraulic lifting platforms.
