I. Performance Features:

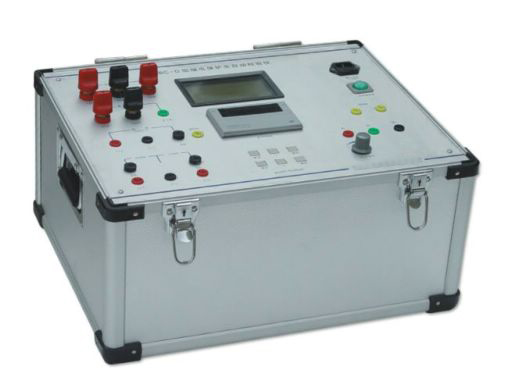

The machine is controlled by a microcomputer, featuring at least 16 touch switches on the panel for easy completion of various test functions. It is equipped with self-check and error reporting features for convenient inspection and maintenance.

2. Comprehensive self-inspection and self-protection features ensure that the circuit can quickly cut off the output and emit both audio and visual alerts during overload or excessive range, reducing unnecessary losses caused by improper operation.

3. Intelligent operation: simply press a button to measure all parameters of a general relay and automatically print all data.

4. The display features a functional display unit, allowing for a clear reflection of the working status from the screen.

5. All printed data is in Chinese characters, such as "Closing Voltage," "Opening Voltage," "Normal Closing Time," etc. (Note: Digital tube display is used, without printing function.)

II. Technical Specifications:

1. Output Voltage Range: Continuously adjustable from 0 to 500V, with a high output capacity of 6000VA, over-range protection at 500V, and an accuracy of ±0.25%.

交流电流输出: AC Current Output

0-50A, 0-100A, 0-200A, 0-600A, continuously adjustable.

At 0-50A, the open circuit voltage is 5V.

At 0-100A, the open-circuit voltage is 10V. Overload protection trips at 300A.

At 0-200A and 0-600A, the open-circuit voltage is 10V.

2. Direct Current Voltage Output:

Continuous adjustable from 0 to 320V, high current of 2A, over-range protection at 320V.

Overload protection action current: 2.1A ±5%.

3. Direct Current Output:

0-200mA, 0-5A, 0-20A adjustable continuously, with an accuracy of ±0.25%.

At 0-200mA, the open-circuit voltage is 48V, and the overload protection trips at 230mA.

At 0-5A, the open-circuit voltage is 24V, and the overload protection trips at 5.2A.

At 0 to 20A, the open circuit voltage is 36V.

4. Fixed Direct Current Voltage Output

When outputting 110V or 220V individually, the current can reach up to 2.5A, but with AC voltage and current,

When DC voltage is output simultaneously, the total capacity cannot exceed 600VA.

5. Digital Millisecond Stopwatch:

Extended Range: 999 seconds (Note: 99.99S)

Resolution: 0.1 millisecond

Accuracy: 0.1% ± 1 character

6. Instrument Accuracy:

Utilizing a 5.5-bit A/D conversion, with an accuracy of 0.05% reading ±1 digit.

7. Whole Machine Measurement Accuracy: ≤0.25%
