Product Overview

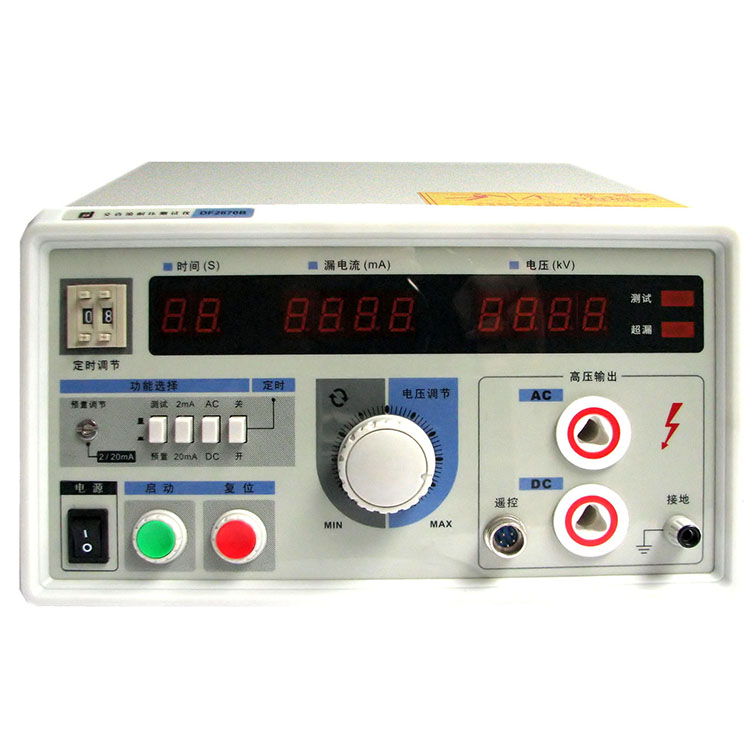

The ED NY-H Portable Pressure Test Instrument is developed and produced by Hubei Electric Power. It is suitable for testing the safety voltage and leakage current of various motors, electrical appliances, instruments, meters, home appliances, as well as strong electrical systems. The instrument is easy to operate, safe and reliable, with good performance and convenient maintenance. It meets the testing equipment requirements of relevant clauses in national standards such as GB4706.1 "General Safety Requirements for Household and Similar Electrical Appliances," GB9706.1 "General Safety Requirements for Medical Electrical Equipment," and GB4943, GB4793, etc.

Product Alias

Voltage Testers, AC Voltage Testers, Portable Voltage Testers

Product Features

1. Digital Display

2. The leakage current values of the tested items displayed during testing

3. Time preset and display, countdown timer for testing

4. Alarm current value can be set at will.

Output waveform is a 50Hz sine wave.

Technical Specifications (Special parameters available for customization)

Capacity (kVA): 1

Output Voltage Range: 0～5 kV

Basic Error ±5%

Leakage Current (mA) Range: 0-200

Basic Error ± (5%r + 3d)

Alarm Current (mA) 0.5～200

Test Duration: 1-99 seconds

Dimensions: 320×325×205mm³

12.5 kg

Operating Temperature: 0~40℃

Relative Humidity ≤ 80%

Power Supply: 220V ± 10%, 50Hz
