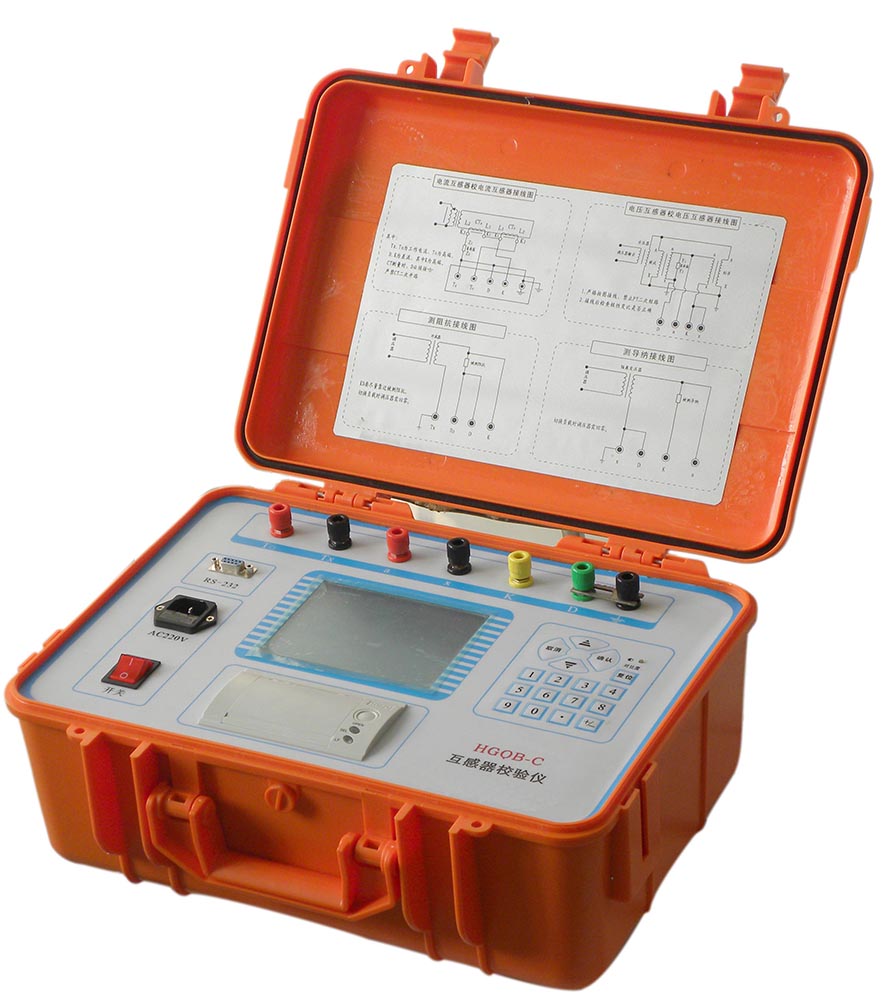

The Transformer Tester is an advanced detection tool, specifically designed for metering, power supply departments, and transformer manufacturers to verify the performance of current and voltage transformers. Below is a detailed explanation based on the product overview and features:
Product Details
Advanced Electronic Technology: The Transformer Calibrator utilizes cutting-edge electronic technology to directly sample and decompose transformer error signals, ensuring the accuracy and rapidity of the measurement.
Digital Display: Through appropriate calculations, the calibrator can simultaneously display the percentage points, phase error, and quadrature error of the transformer in digital form, facilitating user reading and understanding.
User-Friendly Design: The instrument is designed with user-friendliness in mind, featuring easy operation, intuitive readings, and reduced complexity in use.
Portability: With its compact size and lightweight design, the equipment is easily carried to the testing site, significantly enhancing the flexibility and convenience of the testing process.
Low Power Consumption: The instrument operates at lower working currents (voltages), reducing energy consumption while also alleviating the user's labor intensity.
High Precision: The instrument can perform tests under low-rated operating current (voltage) and boasts high-precision measurement capabilities, meeting the stringent performance standards for transformers.
Self-calibration Feature: During the detection process, the instrument can conveniently perform self-calibration at any time, ensuring the accuracy and reliability of the instrument.
Product Features in Detail
Multifunctional Testing: The instrument is capable of detecting phase and ratio differences of current and voltage transformers, testing the impedance and admittance of secondary loads, as well as measuring alternating current and voltage levels.
The large screen display features a 320×240 pixel LCD with a wide viewing range and long-lasting backlighting, making it convenient for use in various environments.
Full Chinese Operational Interface: The interface design is aesthetically pleasing, easy to understand and operate, enhancing user experience.
Large Font Display: Key information such as percentage, difference, and angle differences are displayed in extra-large fonts for easy observation and recording by users.
Automatic Sampling and Judgment: The instrument can automatically sample and judge gender errors and ratio errors, enhancing the accuracy and efficiency of testing.
Supervisor Software Features: Equipped with virtual instrument open functions, facilitating users in performing more advanced data processing and analysis.
Unique Circuit Design: Utilizing advanced and unique circuitry and DSP technology, we have resolved the instability issues of the capacitive-inductive phase-shifting circuit, ensuring the instrument's stability and reliability.
Low Power Consumption & Harmonic Suppression: The instrument boasts low power consumption and high harmonic suppression ratio, ensuring stability and accuracy in complex environments.
In summary, the Transformer Calibrator is an automated detection instrument featuring ease of use, high precision, and low power consumption. It is widely applicable in metrology, power supply departments, and transformer manufacturers, making it an ideal tool for transformer testing.
