Product Overview

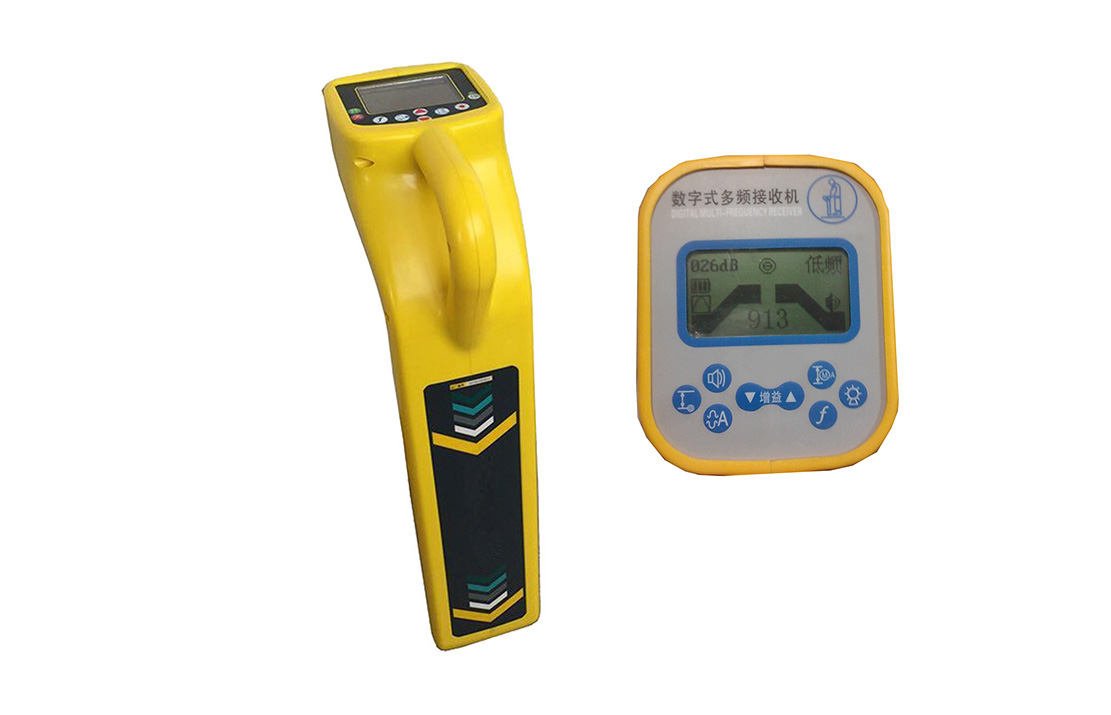

The Underground Pipeline Detector Receiver is a high-tech product that operates based on the principles of electromagnetic wave reflection and electromagnetic induction. It integrates advanced technologies such as digital filtering, wireless reception, and software control. Due to its powerful functionality and superior performance, this receiver has been widely applied in various fields including urban power supply, railway power supply, large and medium-sized enterprises, educational institutions, property communities, city street lighting, highways, and communication maintenance. It plays a crucial role in emergency repairs and underground pipeline location for power supply and utility departments.

II. Receiver Features

Portable and Lightweight: Powered by a rechargeable lithium battery, it is lightweight and easy to carry, operable by a single person, and simple to use.

Digital Design: Software control ensures stable and reliable performance, providing users with a consistent measurement experience.

Multiple indication methods: Simultaneously signal the strength of the signal through three ways—size of numbers, length of ascending/descending gratings, and the softness or sharpness of sound, making the testing process more relaxed and comfortable.

Intelligent Protection: Equipped with low-power alarm and automatic shutdown protection to ensure safe operation of the device.

Multi-functional Configuration: Capable of connecting A-frame or detection rod, utilizing step potential method for pinpointing, and also available with identification receiving coupling clamp for pipeline identification.

III. Technical Specifications

The receiver can accommodate five types of sine AC signals: low frequency, medium frequency, high frequency, radio frequency, and 50Hz.

Receiving Modes: Supports various modes including peak detection, trough detection, depth measurement, and current measurement.

The display interface features a high-brightness LCD screen, capable of operation in strong sunlight, and is equipped with backlit illumination to ensure normal operation at night.

Detection Capability: Direct connection to metal pipelines allows for a detection distance of up to 15KM; a single coupling with metal pipelines can measure 3KM, with multiple couplings extending infinitely; a single induction of metal pipelines can measure up to 300m, with multiple inductions extending infinitely.

Measurement Accuracy: Depth measurement accuracy ±2.5% + 5 cm (0-2m), current measurement range 0-999mA.

Battery Power and Longevity: Equipped with imported high-capacity 18650 lithium batteries, rechargeable up to 500 cycles, standby time over 12 hours, and featuring a power indication function.

Work Conditions: Operating temperature range is -10℃ to 40℃, equipped with automatic overheat and overcurrent protection features.

Dimensions: Volume of 650×110×32mm, weighing approximately 1.6Kg, easy to carry and operate.
