I. Product Overview

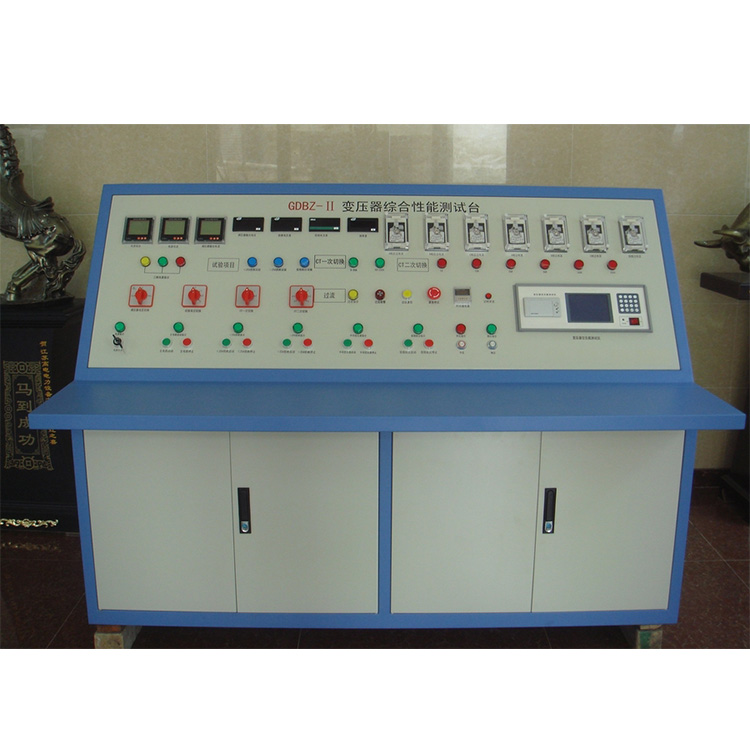

This transformer microcomputer integrated testing system combines virtual instrument technology, merging the high-efficiency data processing capabilities of computers with the hardware control abilities of industrial control computers. Through the system software, the PC can control the testing process and process data in real-time, achieving one-click operation and truly facilitating human-computer interaction and fully automated testing.

II. Product Features

User-Friendly Operation: Based on the Windows operating system, with a full Chinese language environment, tests can be completed simply by clicking with the mouse, with real-time data display.

Advanced Technology: Utilizes advanced control technologies such as PLC for precise control of the testing equipment.

Security Protection: The software is equipped with password protection to ensure operational safety; a mechanical emergency stop button is also provided to safeguard personnel and equipment.

Customized Reports: Factory test reports and print formats can be tailored to meet user requirements, allowing for direct printing or printing after editing.

Trial Capabilities

Supports oil-immersed transformers with a capacity of 63,000 KvA and 110 Kv and below.

Supports dry-type transformers with capacities up to 31,500 KvA and 35 Kv or below.

Supports mine-proof transformers with capacities up to 6300KvA and voltages of 10Kv or below.

Special transformers require customization (detailed capacity and voltage levels are required).

Section IV: Test Projects

Winding Resistance Test

Voltage Ratio Measurement and Connection Group Number Testing

No-load current and no-load loss test

Short-circuit Impedance and Load Loss Testing

Power Frequency External Impulse Voltage Test

Inductive High-Voltage Test

V. Expandable Project

Partial Discharge Test

No-load harmonic test (0-31st harmonics)

Transformer Oil Dielectric Strength Test (0-80KV)

Transformer Temperature Rise Test (Automatically Draw Temperature Rise Curve)

Insulation Resistance Test (Absorption Ratio and Polarization Index)

Interference-resistant Medium Loss Test

Lightning Impulse Test

We offer after-sales support, including installation guidance, technical training, regular maintenance, and software upgrades, ensuring you receive excellent service throughout your usage.
