Additional Instructions for Installing Submersible Flow Meters
1、DivingPusher installationEnsure the verticality of the guide rod during installation, with an allowable deviation of no more thanThe 10MM design ensures that the submersible mixer/pusher operates smoothly on the guide rod without binding or excessive friction.

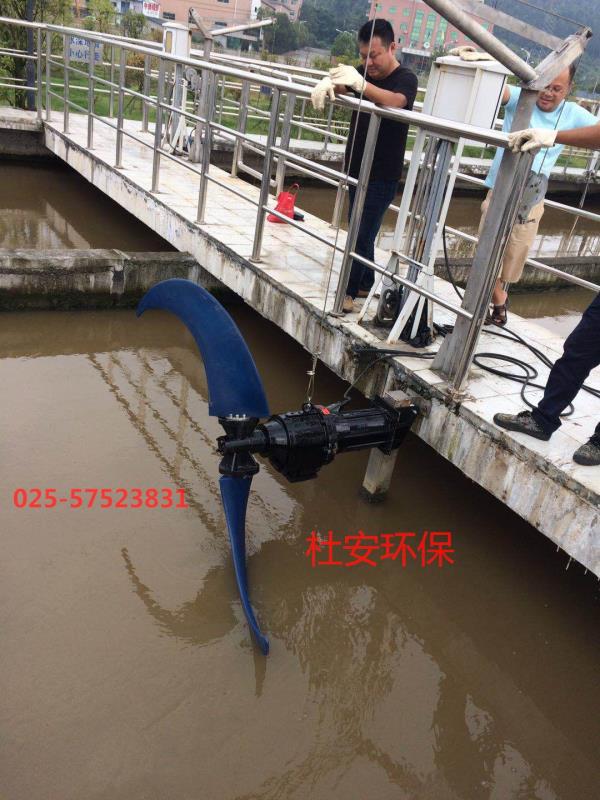

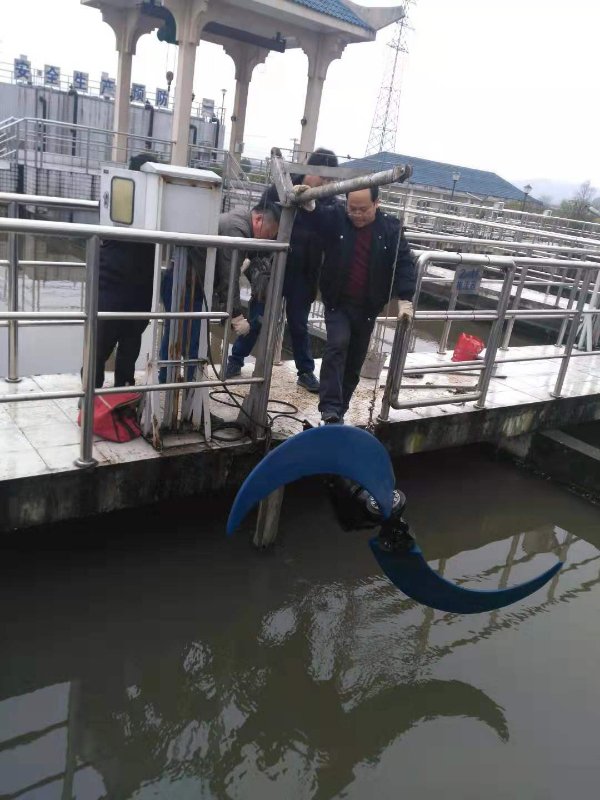

2. When the submersible mixer/pusher is horizontal, the lifting center of gravity is on the third hole counting from the impeller end. During installation, ensure that the lifting frame's lift aligns with the vertical line of the submersible mixer/pusher's center of gravity. This allows for smooth and effortless movement of the submersible mixer/pusher during lifting and lowering.
3. Regarding the use of hoisting wire ropes, please apply lubricant to the rope before use and refer to the national standards for lifting equipment for maintenance and operation of the hoisting equipment.
4. In the wastewater treatment industry, the interface between water and air is corrosive.SeverePlease apply anti-corrosion treatment to the installation system, such as applying grease to the rod.
5. Submersible mixer、The pump should not be rotated during operation. Please adjust the angle during installation before running. Submersible mixerPlease position the flow meter on the lower plate or directly on the bottom of the pool to ensure the steel wire rope is not under stress.
6. The immersion depth of the submersible mixer/flow driver must not be less than 1.1M, otherwise it is prone to generate water vortices and cavitation.
Duwan Environmental Equipment (Jiangsu) Co., Ltd. currently offers the following main products: Submersible Mixers Series:QJB Submersible Mixers, Bi-curved Mixers, QJB-W Sludge Recycle Pumps, Slurry (Frame) Mixers. Submersible Aeration Equipment Series: Jet Aerator, Centrifugal Aerator, Vertical Surface Aerator, Buoyant Stirring Aerator, Deep Water Aerator. Wastewater Treatment Screening and Conveying Series: Mechanical Grates, Shaftless Screw Conveyors, Screw Press, Sand Removal Sump, Sand-Water Separator. Sludge Suction and Discharge Equipment Series: Periphery-driven, Center-driven, Traveling Type, Siphon Type Scrapers, Skimmers, Gates, Underground Equipment, etc. Submersible Pump Series: AS, AV, WQ, AF Type Submersible Sump Pumps, ZQB, HQB Type Submersible Shafts, Mixed Flow Pumps, RJC Long Shaft Deep Well Pumps, QRJ Well Submersible Pumps.
Diving Propulsion Device Precautions
1. Hoisting an aeration pond submersible flow inducerPrelude isEnsure power is disconnected for safety; strengthen cable protection during lifting to prevent any cuts or scratches. Directly lifting cables or using cables to hoist other heavy objects is strictly prohibited.
Cable ends must never be immersed in liquid, as water may seep through the cable into the junction box or motor.
All equipment casings should be reliably grounded to prevent electric shock accidents.
