Dual-curved mixer with variable frequency control
Submersible Bi-curved Blender
Double-Sided Curved Blender Price
Widely used in industries such as environmental protection, chemical engineering, energy, and light industry, where solid-liquid-gas exchange of liquids is required, particularly suitable for coagulation tanks, regulating tanks, anaerobic tanks, aeration tanks, nitrification and denitrification tanks in wastewater treatment processes, as well as for agitation and mixing of various corrosive media.
380V
Shaft 304 Stainless Steel
Impeller diameter: 2000mm

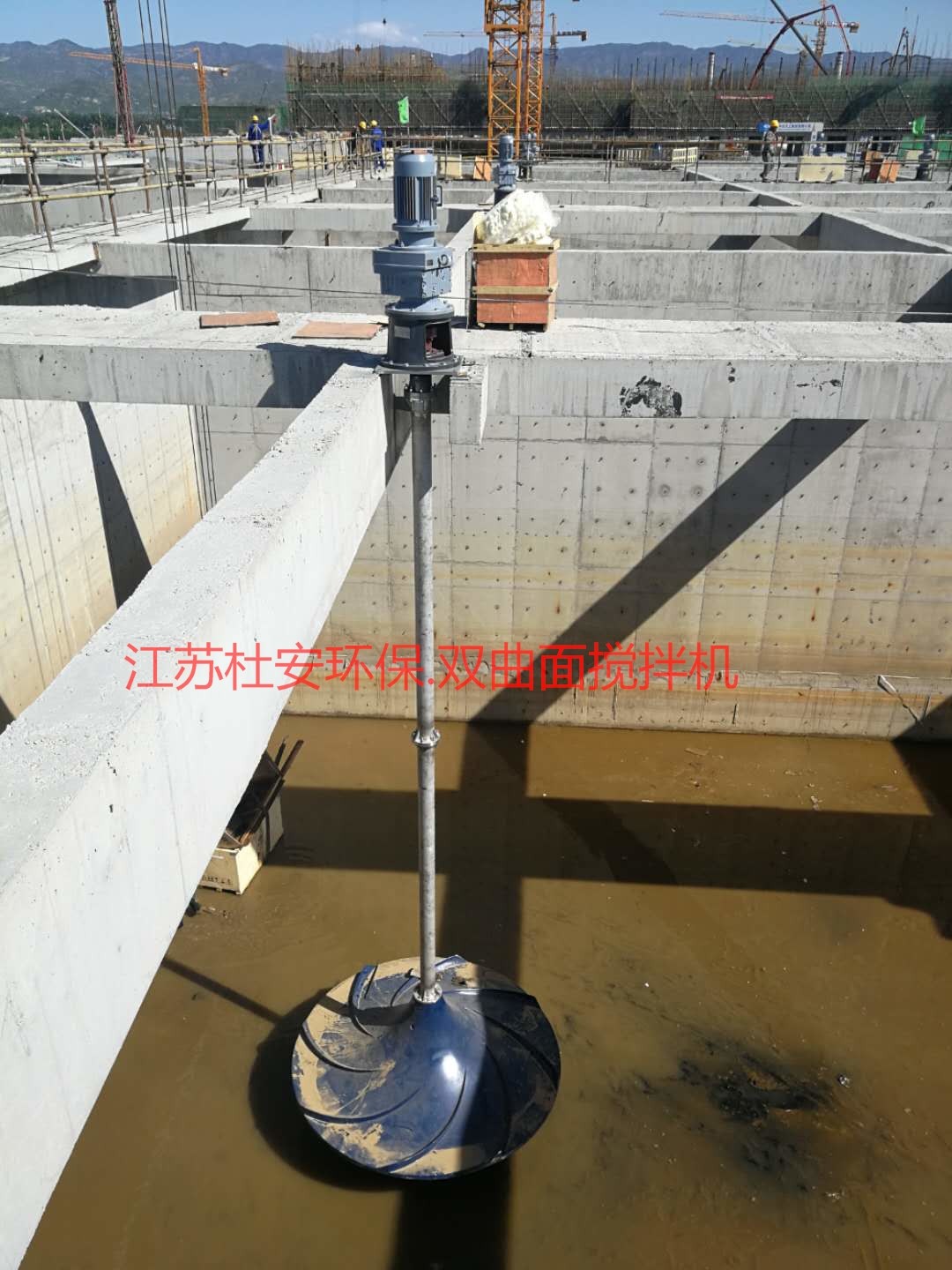

The Duwan Environmental GSJ-2000 bi-curved mixer boasts various features that make it suitable for many complex wastewater treatment environments, such as chemical wastewater treatment facilities, where solid and liquid waste requires mixing. The mixer features a bi-curved structure on its impeller, formed by a hyperbola generatrix rotating around the impeller axis. Its unique impeller design maximizes the combination of fluid characteristics and mechanical motion. The hyperbola equation is xy=b, and the curved surface is formed by rotating the curve along the y-axis. To accommodate water flow, the design incorporates water intake at the impeller center, reducing intake turbulence and ensuring uniform pressure on the impeller surface, thus maintaining overall balance during operation. There are six to eight guide vanes evenly distributed on the involute bi-curved surface. They utilize the potential energy obtained from the additional water intake under the force of liquid gravity and the kinetic energy generated by the impeller's rotation to create a circular motion along the impeller circumference. Due to the reflection from the pool wall, this forms a cyclic water flow from top to bottom. These features are the reasons why this mixer can be a死角-free mixer. The following image showcases the new bi-curved mixer, which has improved construction over previous models. It is made of polyurethane, easier to install, and maintenance is convenient. If any part is damaged during use, simply replace it. For installation and operation instructions, refer to the user manual.
Dual Curved Agitator Variable Frequency Control Box | Equipment Serial Numbers: 10AC8-15 | ||
Equipment Location: Silt Consolidation Pond | Quantity (units): 8 units | ||
Contractor: | Model Number: | ||
Service Scope: Silt Comprehensive Pool, 1 Control 1 | |||
Key Features: Power, control, and protection for sludge pond mixers Work status and parameter signals are sent to the PLC (passive contacts). Accept PLC signals for electrical protection functions of electrical equipment control Local Operation and Operating Condition Display of the Sludge Pond Agitator 1 vs 1 | |||
Protection Requirements: Overload, Phase Loss, Short Circuit, Stalling | |||
Key Electrical Components: Circuit Breakers, Contactors, Thermal Relays, Intermediate Relays, Changeover Switches, Push Buttons, Emergency Stop Buttons, Indicator Lamps | |||
Project | Technical Specifications | Responsive Parameters | |
Rated Voltage | AC 380V/220V、50Hz | ||
Rated Power | 7.5kW | ||
Protection Level | IP55 | ||
Surge Protector | Iimp=12.5kA（10/350μs），Up≤2.5kV | ||
Installation Method | Hot-dip galvanized angle steel bracket installation | ||
Enclosure Material | 304 stainless steel (2mm thick) | ||
Box Surface Treatment | Sandblasted | ||
Dimensions (Width x Height x Depth) mm | Duwan Environmental independently determines | ||
