WL40-12-3 Vertical Sewage Pump Installation Instructions
Vertical Waste Pump Pricing

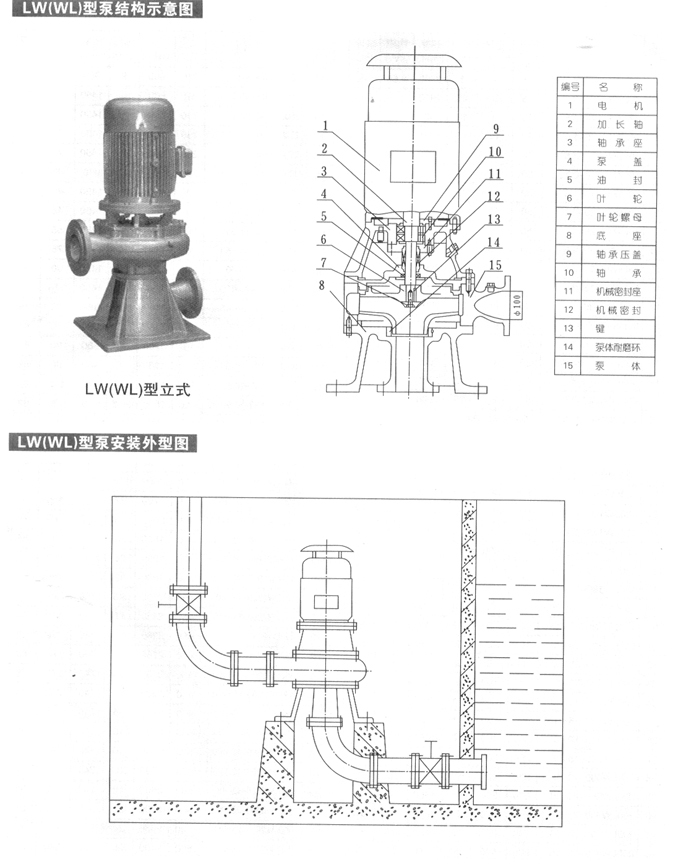

Vertical Sewage Pump Installation Dimensions

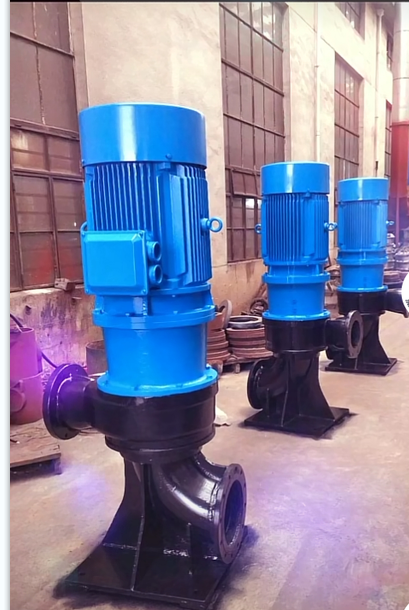

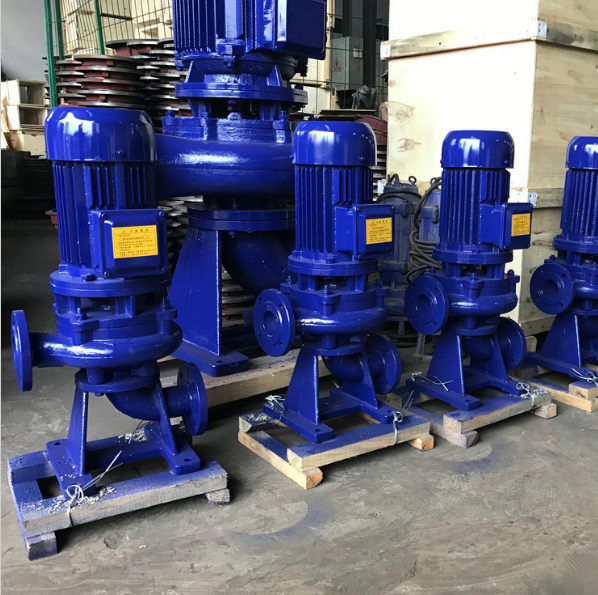

The Duwan Environmental Protection Vertical Sewage Pipeline Pump is a type of solids handling pump, and it is compatible with...Centrifugal PumpOur differentiator lies in the fewer blades of the impeller and wider flow channels, which facilitate the transportation of wastewater containing fibers or other suspended impurities. Additionally, the pump body features inspection and cleaning holes on its outer shell, making it easier to clear the impurities inside the pump casing after shutdown.
Jiangsu Du'an Environmental ProtectionWL40-12-3Vertical Sewage PumpHigh efficiency and excellent energy-saving effect. The structural features include single or double blades, utilizing a large flow channel design to minimize fiber waste entanglement and facilitate the passage of large materials. Capable of pumping diameter of100-250mmFiber length:300-1500mmLarge particle solid blocks. Additionally,WLThe vertical sewage pump features a flat power curve, allowing it to operate within its full performance range without the risk of overload.
Dry-type Motor
380V
(1) The vertical sewage pump requires a segmented design for the pump shaft to prevent corrosion from damaging the motor shaft. It is crucial to ensure the motor's stable and reliable long-term operation.
(2) Vertical sewage pumpVertical structure, with a V1-type standard motor directly driving the pump.
(3) The pump cover and bracket of the vertical sewage pump are designed as two separate components.
(4) The vertical sewage pump features a rigid connection between the pump shaft and motor shaft, ensuring a high degree of concentricity in the pump shaft with minimal vibration and low noise.
(5) The vertical sewage pump components such as the pump body, cover, and impeller are produced using precision investment casting, featuring high dimensional accuracy, smooth surface finish, and an aesthetically pleasing appearance.
Vertical Sewage PumpFlow components are made of 304 or higher grade material to ensure extended service life.
Vertical chemical pumps will utilize cutting-edge hydraulic structures to ensure stable performance and high efficiency.
(8) Vertical Chemical PumpMechanical seals are employed, utilizing M3N or MG1 rubber bellows mechanical seals to ensure reliable sealing.
(9) The requirement is for a high degree of interchangeability throughout the entire series of parts such as pump covers, shafts, and connecting frames.
Vertical Sewage Pump Main Technical Parameters
(1) Quantity: 4 units
(2)Drive Unit: Electric Motor, 380V
(3) Operational Status: 2 in operation, 2 in standby.
(4) Technical Specifications
Pump Rotation: When looking from the drive end to the pump, the rotation direction is clockwise. It is recommended to prioritize pumps with a smoother characteristic curve.
Pump Flow Rate: 25 m³/h
Flow Pump Head: 8 meters
Medium Temperature: Generally not higher than 50℃.
Vertical single-stage single-suction centrifugal pump
Duwan Environmental's WL Vertical Waste Water Pump is easy to install and versatile. It can be used as a general pipeline pump for pressurized water supply in high-rise buildings, as well as for transporting wastewater containing particles and fibers. In addition to wastewater transportation, it is also suitable for use as a drainage pump, filter flushing, and condensate circulation pump.
