Jiangsu Du'an QJB7.5/12-620/3-480S Submersible Mixing Pumps with Lifting Bracket

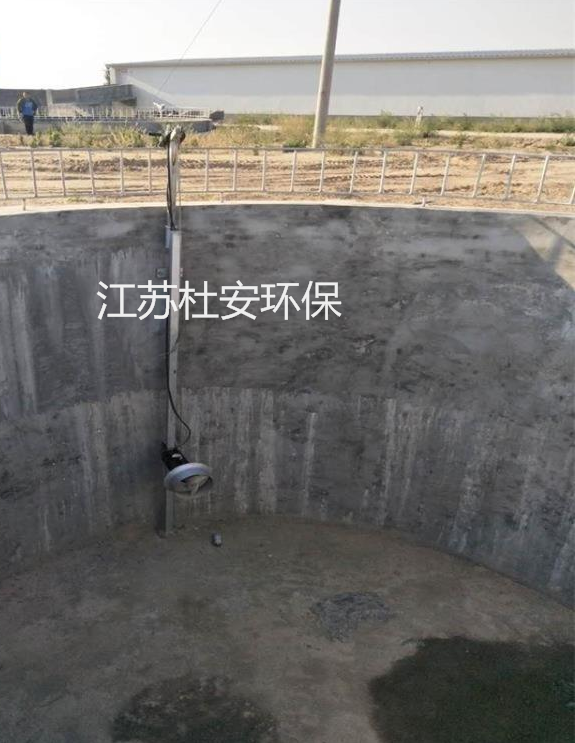

Submersible mixer for non-draining installation

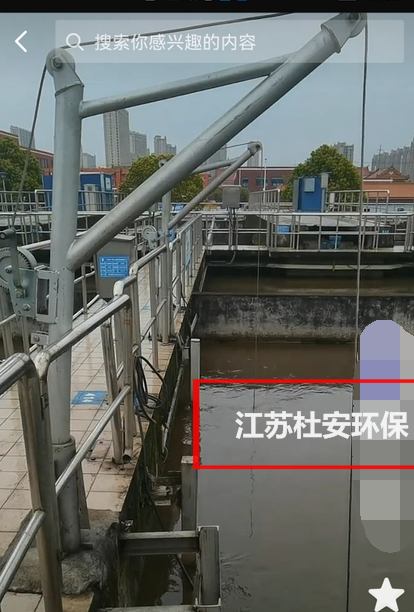

Submersible mixer with water installation

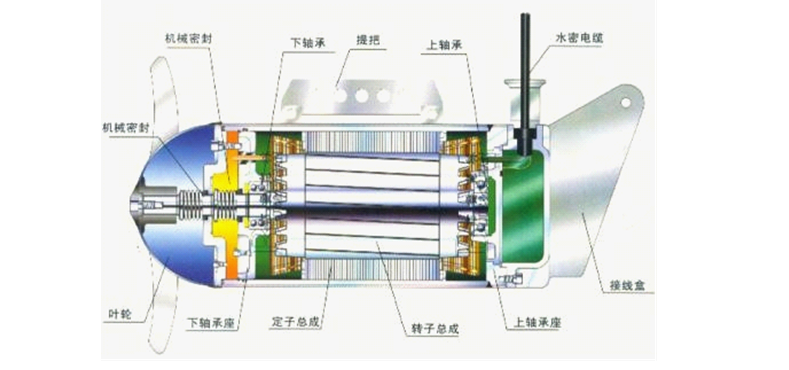

Jiangsu Du'an Environmental Protection's QJB7.5/12-620/3-480S Submersible Agitator's main component materials
No content provided for translation. | Name | Material |
1 | Housing | Stainless Steel 304 |
2 | Leaves | Stainless Steel 304 |
3 | Axle | Stainless Steel 304 |
4 | Guides, brackets | Stainless Steel 304 |
5 | O-ring | Nitrile rubber |
6 | Mechanical Seal | Corrosion-resistant sintered silicon carbide or tungsten carbide (WCCR) |
7 | Fasteners | Stainless Steel 304 |
Jiangsu Du'an Environmental Protection Co., Ltd. QJBSubmersible mixer installation system
QJBThe submersible mixer's installation system allows for quick assembly and disassembly without the need to drain the pool water. When the pool depthH＜4Mishi recommends adopting System I for installation. The submersible mixer's submersion depth can be vertically adjusted as needed, and it can rotate a significant angle of ± within the horizontal plane around the guide rod.60°The base, support frame, and lower support of the lifting system are all fixed with expansion bolts to the connecting surfaces of the pool, no pre-drilled holes required. As for the depth of the pool...H＞4Mishi recommends the use of System II, which requires the construction of a concrete foundation (or steel structure base) at the bottom of the pool. The base of the hoisting system, the steel rope mounting brackets, and the guide base connections to the pool are all fixed with expansion bolts, eliminating the need for pre-drilled holes. System II utilizes guide steel ropes instead of rods, offering convenient transportation and simple on-site installation. This system fundamentally avoids issues such as rod bending and deformation during transportation, which can affect normal operation. It also effectively improves the situation where deep pool depths result in improper lifting due to installation errors. The installation conditions with cantilevered pool tops (as shown in the figure) are even more convenient and reliable. When placing an order, please provide the pool depth.HIn addition to the pool-type diagram, it ensures the factory can determine the size of the guide rod or guide wire during processing. The material for the installation system is made of stainless steel (or carbon steel). Apart from the guide rod or guide wire and the lifting base, multiple mixers can share a single lifting device (unless the user has special requirements).
