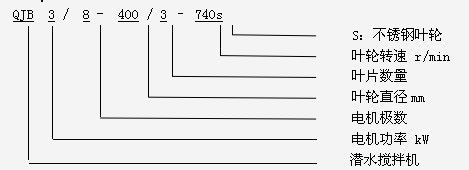

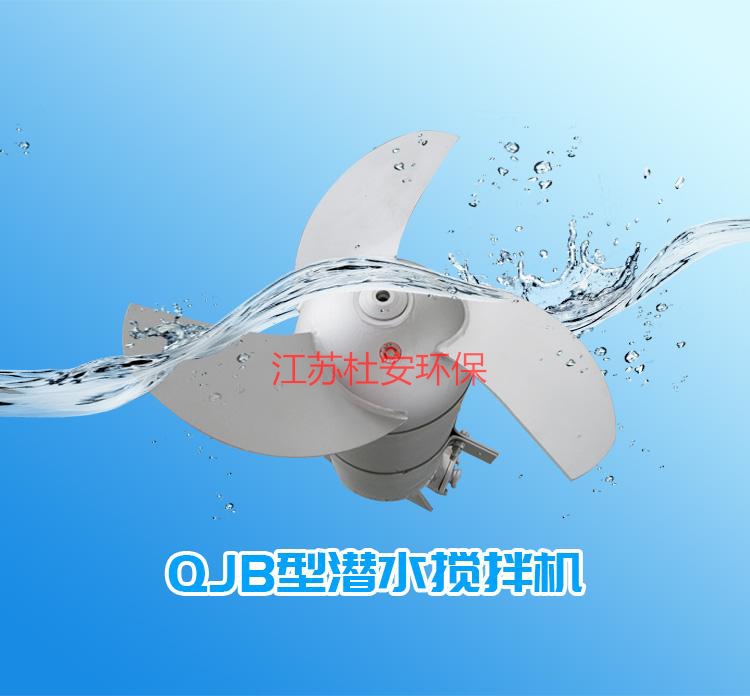

Duwan Submersible Mixer QJB2.2/8-320/3-740S
Jiangsu Du'an Environmental Protection QJB2.2/8-320/3-740S Submersible Stirrer Technical Description
Performance and Technical Requirements for Submersible Mixers
The submersible mixer rotates smoothly with no jamming, stalling, or vibration issues.
The submersible mixer underwent a sealed pressure test with a pressure of 3 kg/m², and there were no leakage issues for the entire duration of 5 minutes.
The submersible mixer utilizes a double mechanical seal structure and lip seal arrangement, ensuring reliable operation for up to 15,000 hours without the need for replacement.
Submersible mixer's cable is made of YZW type rubber sheathed flexible cable as specified in GB5013.2 or equivalent cables, with a standard configuration length of 10 meters per unit. The cable sealing head is treated with special vulcanization to prevent the cable sheath from being damaged and water from seeping into the motor.
The submersible mixer has a surface coating of anti-corrosion paint, featuring a glossy finish with no signs of dirt, damage, or cracks.
The submersible mixer is equipped with a sealed leakage protection device within the oil chamber.
The dual-color wire (yellow/green) in the cable of the submersible mixer is designated as the ground wire, ensuring a reliable connection. The ground marking is prominent and resistant to fading during the usage period.
Propellers and rotors of the submersible agitator undergo dynamic balancing tests, achieving a balance accuracy of G6.3.
Submersible mixer stator winding is equipped with a humidity sensor to prevent the motor winding from being damaged by moisture.
Submersible agitators, under specified conditions, are...Prior to the fault, the average runtime was no less than 10,000 hours, and the overall lifespan of the unit was no less than 20 years.
Submersible mixer structural design requirements:

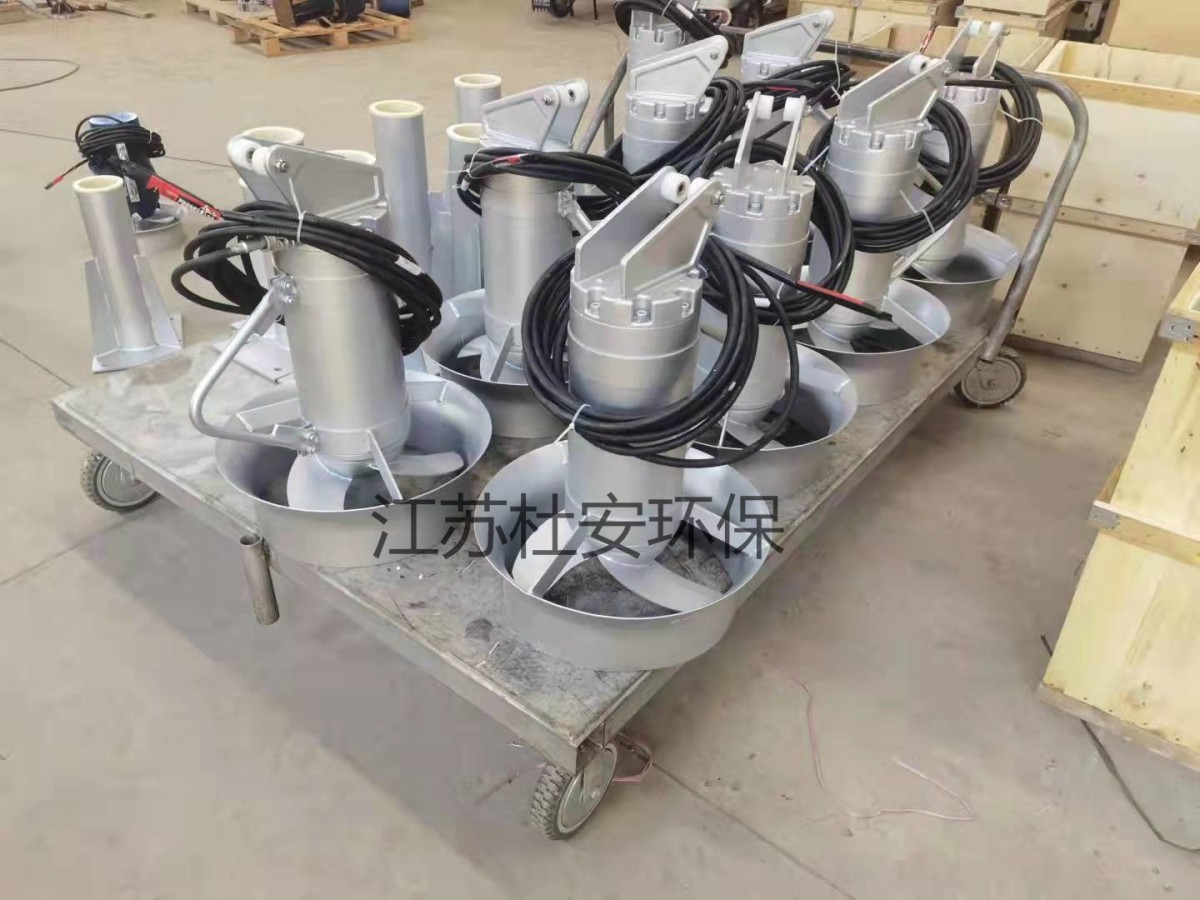

3.1 Mainframe
The潜水mixer features a direct-drive stamping structure, employs multi-stage motors, and has blades formed through stamping, ensuring high precision and efficiency. The compact design offers a small volume and lightweight, with ease of operation and maintenance, and a long service life. The housing is fully made of stainless steel 304, with an aesthetically pleasing and smooth appearance.

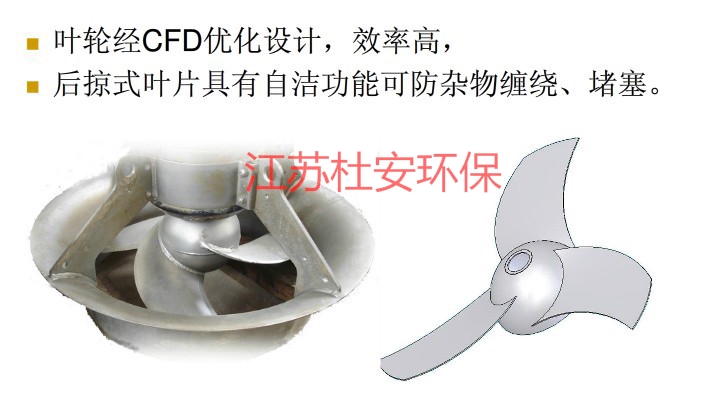

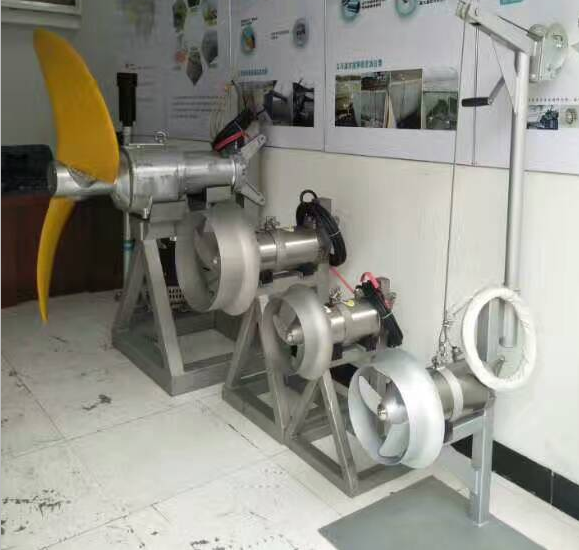

The submersible propeller features a cycloidal pinwheel reduction structure, which is compact, small in size, and light in weight. The impeller is designed with excellent hydraulic performance through CFD software optimization.
3.2, Junction Box
The junction box is fully sealed and isolated from surrounding liquids and electrical motor components.
Cooling: The motor stator is cooled by the surrounding liquid.
3.3. Blade
Submersible agitator blades feature a reverse twisted curve design to prevent blade clogging and slagging.
The submersible propeller blades are designed with two-leaf rubber shapes and steel hubs, effectively preventing blade breakage. The blade inlet edges are curved backward, featuring a long-term automatic cleaning function. They are securely fastened to the shaft with locking nuts, making them easy to remove and replace during lifting and maintenance.
3.4. Electric Motor
The insulation grade of the motor winding is H-class, and under normal conditions, the motor temperature does not exceed 80°C.
3.5 Oil chamber
Lubricating and cooling the sealing unit, bearing housing, and gears between the motor and liquid, the oil chamber serves as a shock absorber and noise reducer. A bladder device can be installed as needed to reduce and lower the pressure rise within the oil chamber.
3.6, Bearings
The bearing life of the submerged mixer is over 100,000 hours.
Considering the adverse factors in bearing operation, the selected bearing lifespan will be higher than the aforementioned value. Our company uses SKF imported bearings.
3.7: Axial Seal
The submersible mixer consists of two mechanical seals and one lip seal. Seal material: Tungsten Carbide.
Submersible mixer corrosion prevention and materials: Motor housing: HT200 corrosion resistance; Blade shaft: Stainless steel 304; Impeller: Stainless steel 304; Screws, bolts, nuts, and other connecting accessories: Stainless steel 304.
Axle 304 Stainless Steel
Propeller Stainless steel 304 nitriding treatment or other hardness treatment.
Chassis Shell 304 Stainless Steel
Guideway Installation System 304 Stainless Steel
O-rings Nitrile rubber
机械密封 碳化钨
Electrical Control Cabinet Stainless Steel
Matching field stainless steel control box
Each Duwan Environmental Protection Submersible Mixing Pump is equipped with a control and protection signal cable, controlled and protected by a matching control cabinet. It features overloading, phase loss, short circuit, leakage, and over-temperature protection functions, along with corresponding signal indications, ensuring reliable operation of the unit and equipped with a PLC interface.
Jiangsu Du'an Environmental Protection offers a complete submersible mixer package, including: the main submersible mixer unit, bracket, rod, hoisting chain, a sufficiently long submersible cable between the pool bottom and the top junction box, hoisting equipment, and all necessary accessories, fasteners, and spare parts for the safe, effective, and reliable operation of the mixer.
