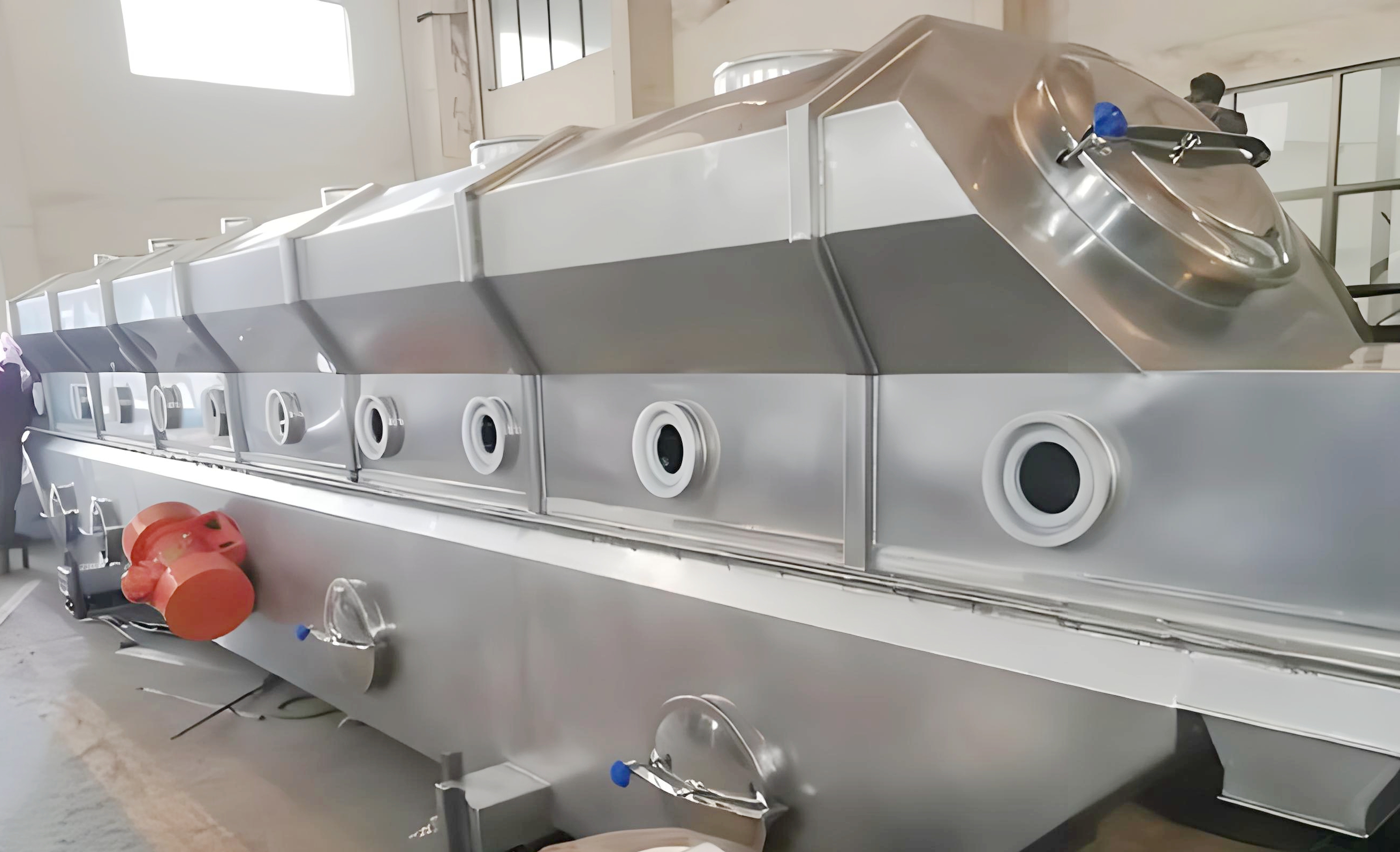

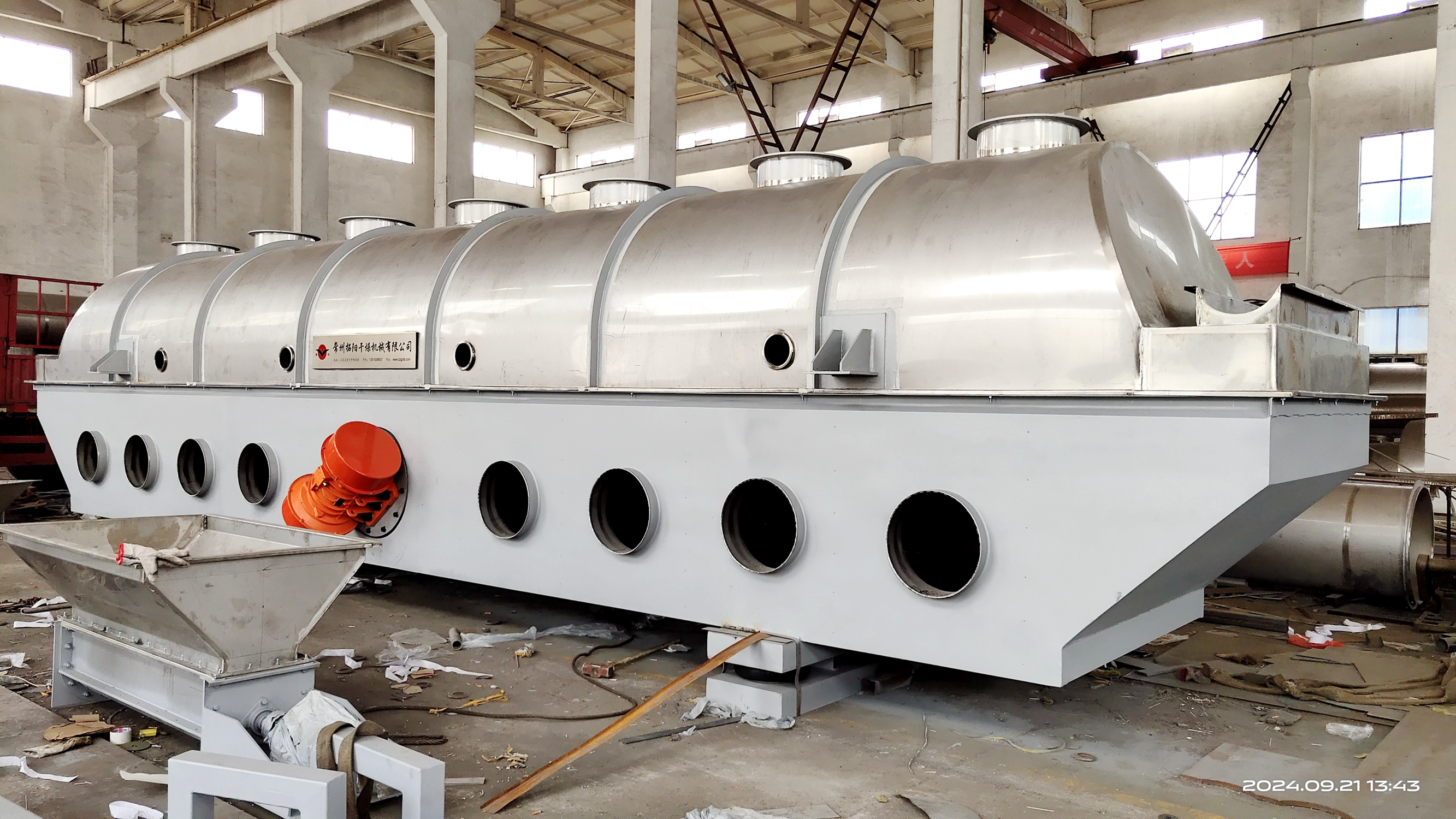

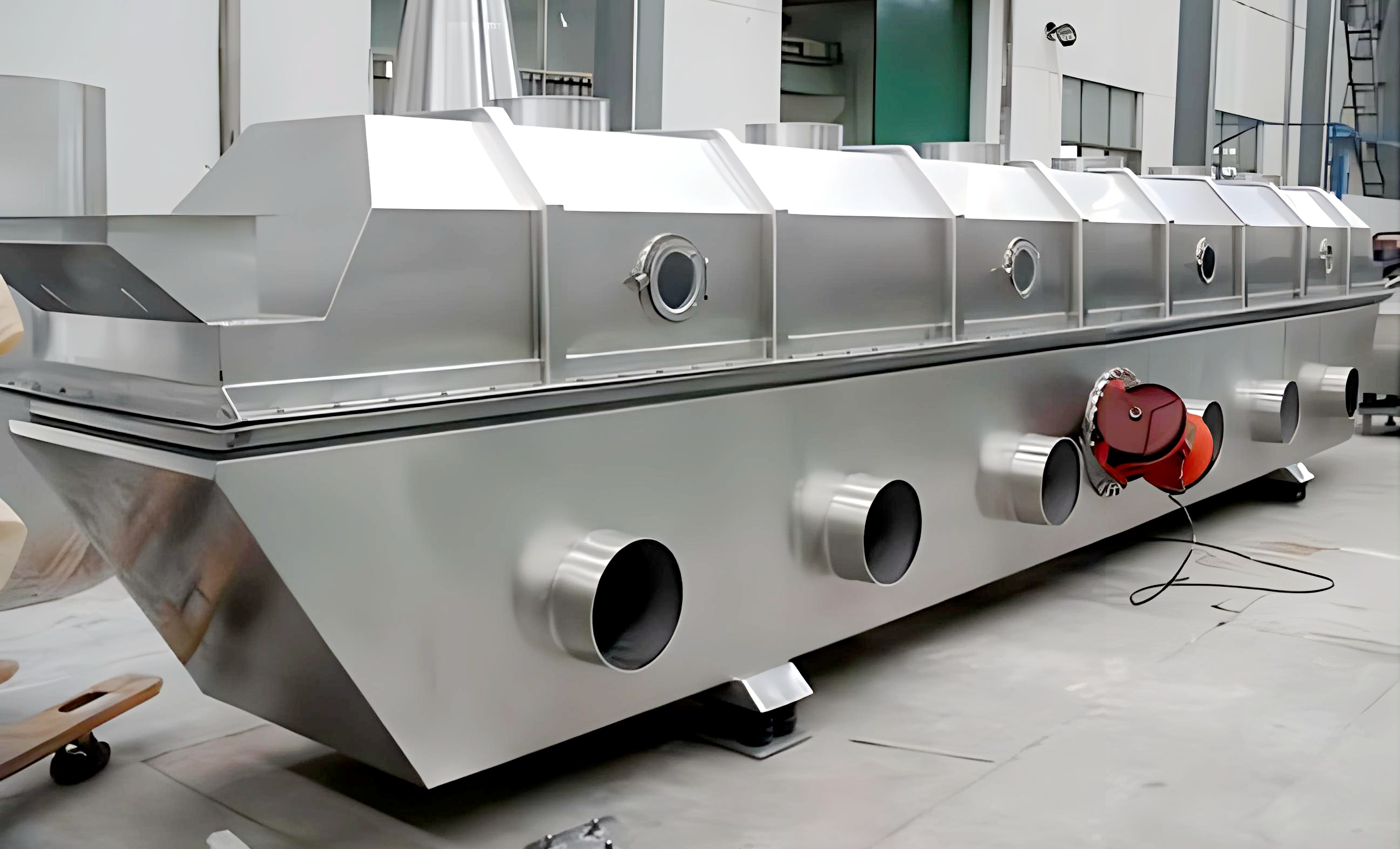

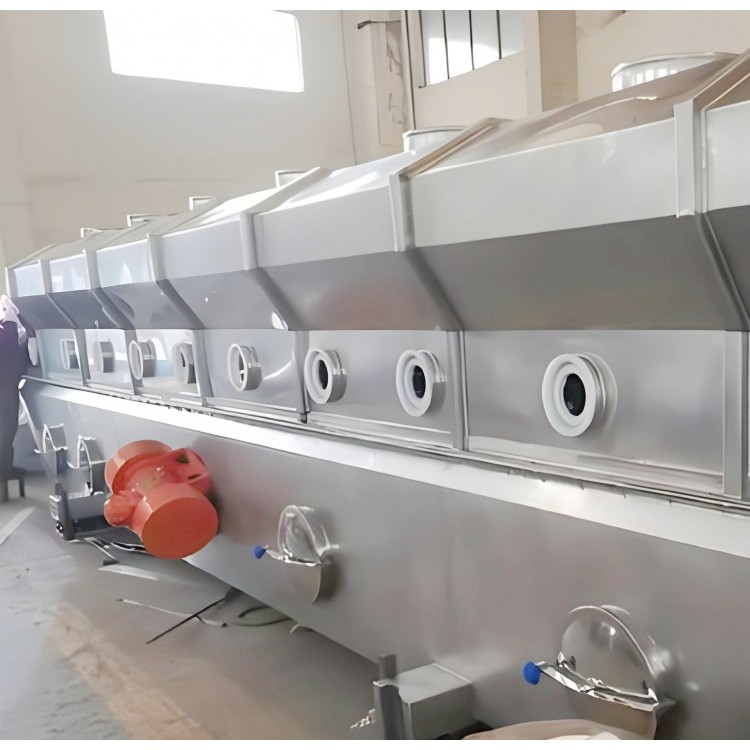

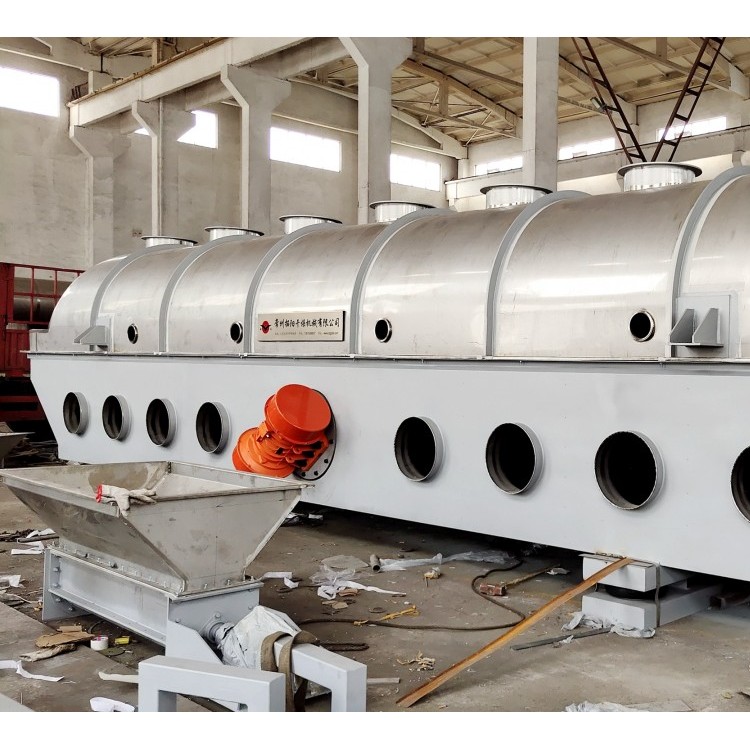

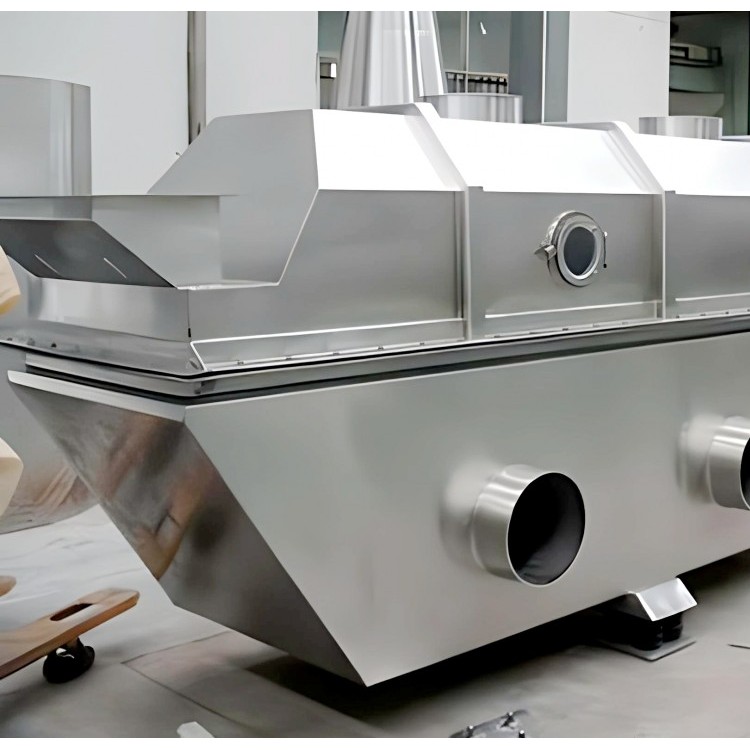

Product Overview: The ZLG Vibrating Fluidized Bed Dryer operates by introducing material into the machine through the feed port. Under the action of vibration, the material is continuously propelled forward in a horizontal direction. Hot air passes upward through the fluidized bed and exchanges heat with the wet material. The wet air, after being dusted by a cyclone separator, is exhausted through the exhaust port. The dried material is discharged through the discharge port.

Vibration Fluidized Bed Dryer Working Principle

Material enters the machine through the feeding port and is continuously propelled forward in a horizontal direction under the action of vibration force. Hot air passes upward through the fluidized bed and heat exchanges with the wet material. The wet air, after being dusted by the cyclone separator, is exhausted through the exhaust port. The dried material is discharged through the discharge port.

Vibration Fluidized Bed Dryer Features

Material heats evenly, achieves full heat exchange, boasts high drying intensity, and saves energy by approximately 30% compared to standard dryers.

2. The vibration source is driven by a vibration motor, offering smooth operation, easy maintenance, low noise, and a long service life.

3. Fluidized bed stability without dead zones or blow-through. The bed opening pattern and the opening rate are crucial. Final moisture content and yield can be controlled by the amplitude and feeding amount.

4. Good adjustability, wide applicability.

5. Minimizes surface damage to materials, suitable for drying fragile materials. Works effectively even when the material particles are irregular. Significantly superior to a boiling bed.

6. Features a fully enclosed structure, effectively preventing cross-contamination between materials and air, ensuring a clean working environment.

Vibration Fluidized Bed Dryer Application Range

1. Chemicals & Pharmaceuticals: Various tablet granules, including xylitol, succinic acid, xylitol, mannitol, boric acid, borax, hydroquinone, malic acid, and maleic acid.

2. Food Products: Alcohol, monosodium glutamate, sugar, casein, chicken essence, salt, slag, Douban sauce, seeds

3. Also suitable for material cooling and humidification.
