Features:

The AMC series programmable intelligent electrical measuring instruments are designed for power monitoring needs in power systems, industrial and mining enterprises, public utilities, and intelligent buildings. They integrate the measurement of power parameters (such as single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency, and power factor) as well as energy monitoring and assessment management. Equipped with a high-brightness LED/LCD display interface, they allow parameter setting and control through buttons, making them highly suitable for real-time power monitoring systems. They can directly replace conventional power transmitters and measuring instruments. As an intelligent and digital front-end acquisition component, this instrument has been widely used in various control systems, SCADA systems, and energy management systems.

It integrates the measurement of all electrical parameters (such as single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency, power factor, etc.), multi-rate electricity metering, four-quadrant electricity metering, harmonic analysis, as well as electricity monitoring and assessment management. Multiple peripheral interface functions: equipped with RS485/MODBUS-RTU protocol; with switch quantity input and relay output to enable the "remote signal" and "remote control" functions of circuit breaker switching. It utilizes an LCD display interface and operates parameter settings and control via panel buttons, making it highly suitable for real-time power monitoring systems.

Application Range:

Complete power monitoring for incoming lines, busbars, or critical feed lines

Monitoring of automation devices and intelligent terminal systems within low-voltage cabinets

Substation, building, or factory automation systems

Power Distribution Automation System in Industrial Enterprises

Factory power system automation and load control

Energy and Energy Efficiency Management Systems

Power Plant Electrical Energy Management System

Order Example:

Specific Model: AMC72-E4/KC

Technical Requirements: Input voltage 220V; current ratio 400A/5A; wiring method three-phase four-wire; accuracy grade 0.5.

Communication Protocol: RS485 Interface MODBUS-RTU Protocol

Auxiliary Power Supply: AC/DC 220V

Technical Specifications:

Application Network Diagram

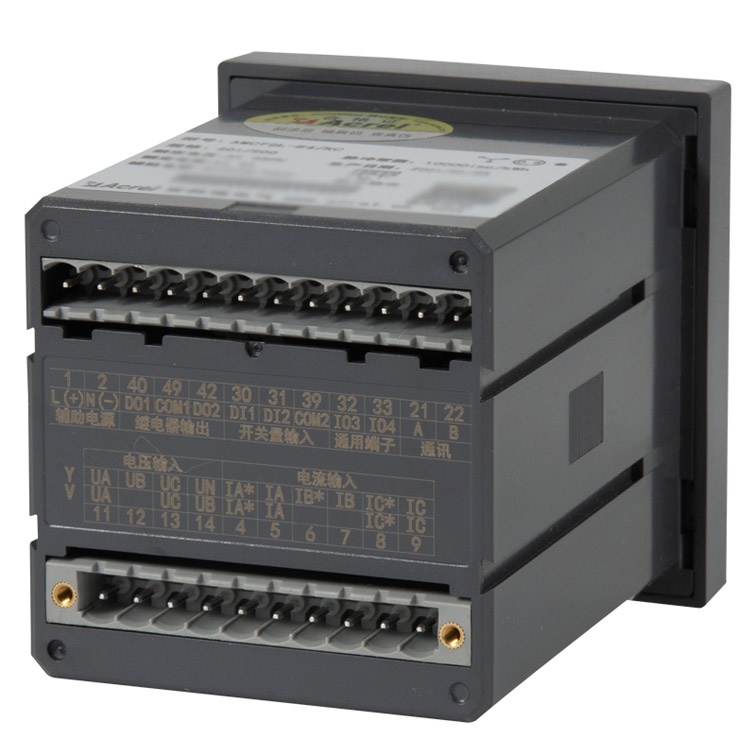

Exterior Installation:

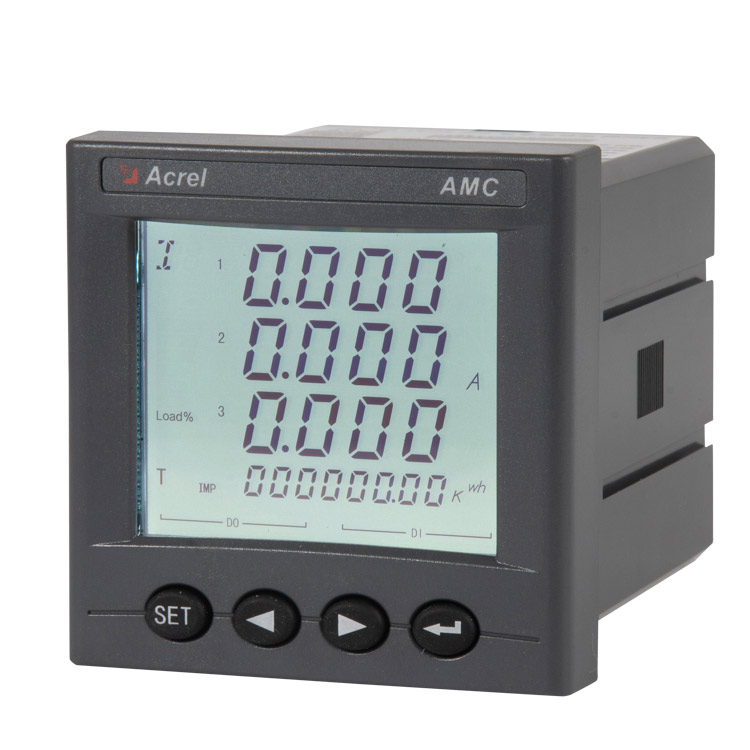

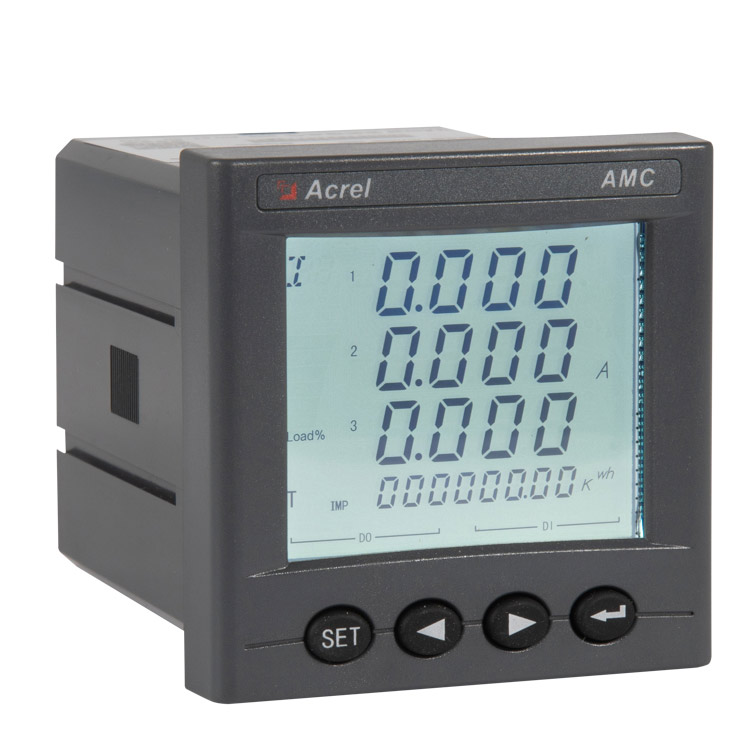

72 Appearance:

96 Shape:

Product Quotation:
