Function:

Power Distribution cabinets (hereinafter referred to as "distribution cabinets") for transmission equipment are designed specifically for power distribution, comprehensive monitoring, and energy data collection for transmission equipment.

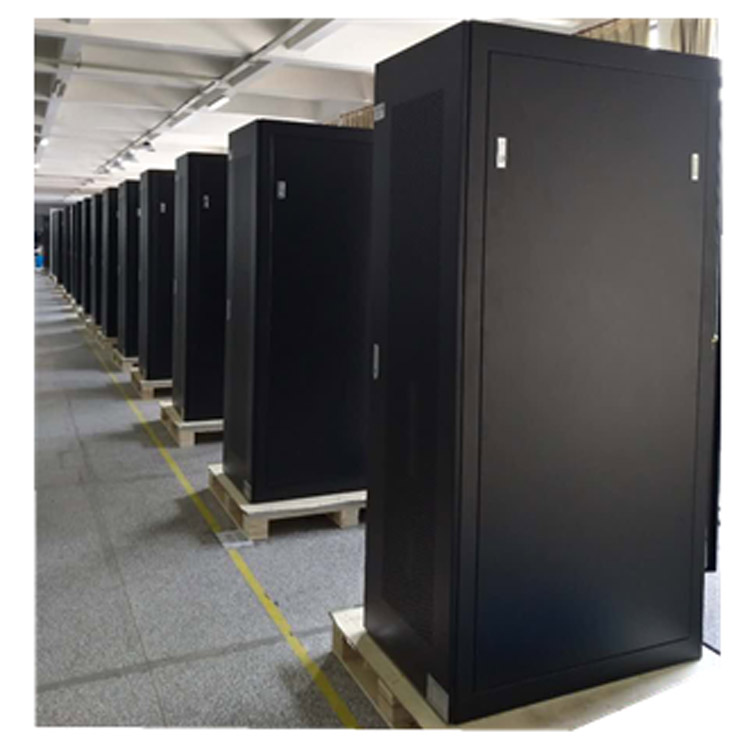

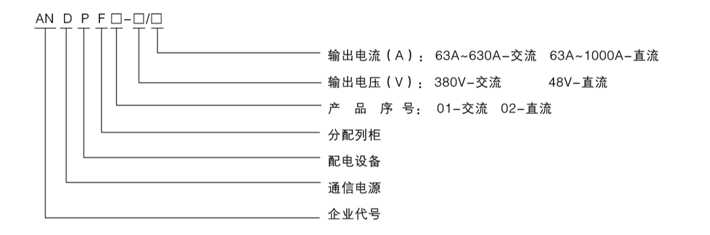

Model Description:

Technical Specifications

Product Categories

A. It can be divided into AC (Alternating Current) and DC (Direct Current) based on the type of input current.

B. It can be divided into single-channel and dual-channel types based on the input channels. To ensure transmission safety, it is recommended to opt for independent dual-channel.

(2) Capacity

Direct Current Power Distribution Cabinet

Nominal DC Voltage

Nominal DC voltage is -48V, 240V.

DC Current Rating

DC Current Ratings Include: Input Current (A): 63, 80, 100, 200, 250, 300, 350, 400, 500, 630, 800, 1000; Branch Current (A): 6, 10, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125.

B. Communication and Distribution Switchboard

Nominal AC Voltage

Nominal voltage ratings include: a) Single-phase three-wire system: 220V; b) Three-phase five-wire system: 380V.

② Rated交流Current

交流电流 rated values include: a) Input Current (A): 63, 80, 100, 125, 160, 200, 250, 300, 400, 500, 630; b) Branch Current (A): 6, 10, 16, 20, 25, 32, 40, 50, 63.

Frequency Rating

The rated frequency is 50Hz.

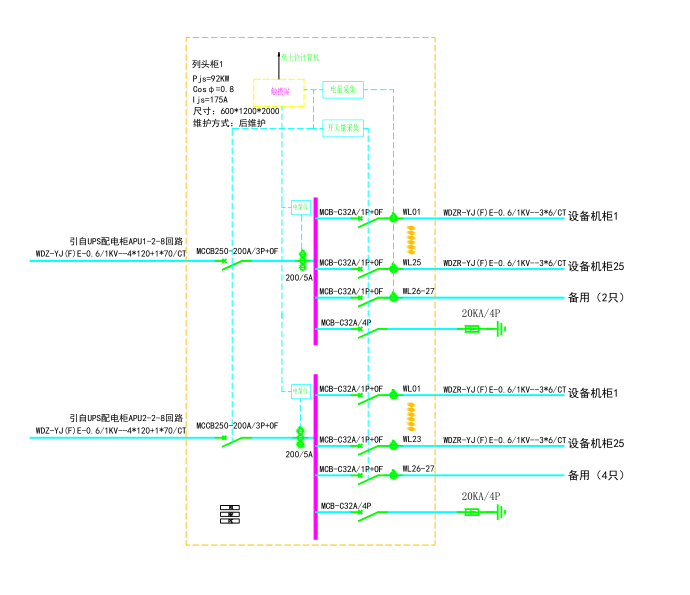

Electrical Principles

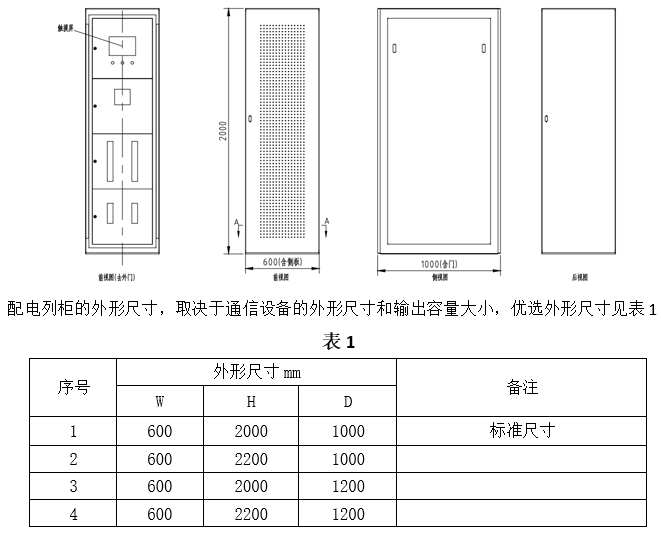

Dimensions:
