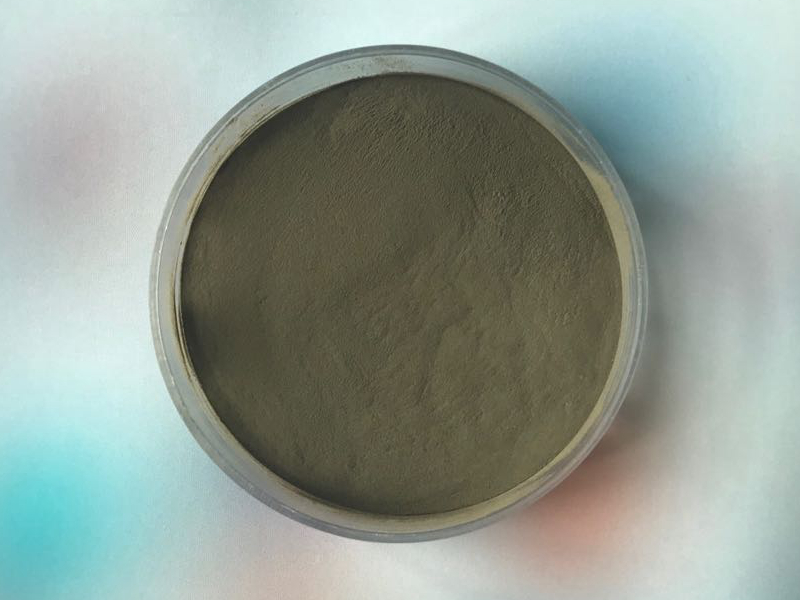

Characteristics: High purity artificial graphite as carbon source, medium fluorination degree of fluorinated carbon, cost-effective, appearance is brown powder, tapped density is around 1.0.

I. Product Introduction:

Fluorinated graphite is an intercalated compound produced through a direct reaction between carbon and fluorine. It is a new type of functional material with very low surface free energy and excellent thermal and chemical stability. Fluorinated graphite is a solid, structural, non-stoichiometric fluorocarbon empirical formula (CFx)n, and the reaction temperature depends on the type of raw materials, the design of the reactor, the end use, and the desired degree of fluorination.

Section II: Technical Advantages:

Our company has independently developed a fluorine gas internal circulation process for fluorination reactors, utilizing a high-temperature synthesis method (dry process) to produce fluorinated graphite. We have also developed a unique automatic control structure for the reactor, which is resistant to corrosion and can withstand high temperatures and high concentrations of fluorine gas atmosphere. This solution overcomes difficulties in the fluorinated graphite production process, enhancing safety. The product achieves various fluorocarbon ratios with controllable particle sizes, nearly reaching the theoretical fluorocarbon ratio value (1.25); non-graphite fluorocarbon ratios can reach up to 1.28.

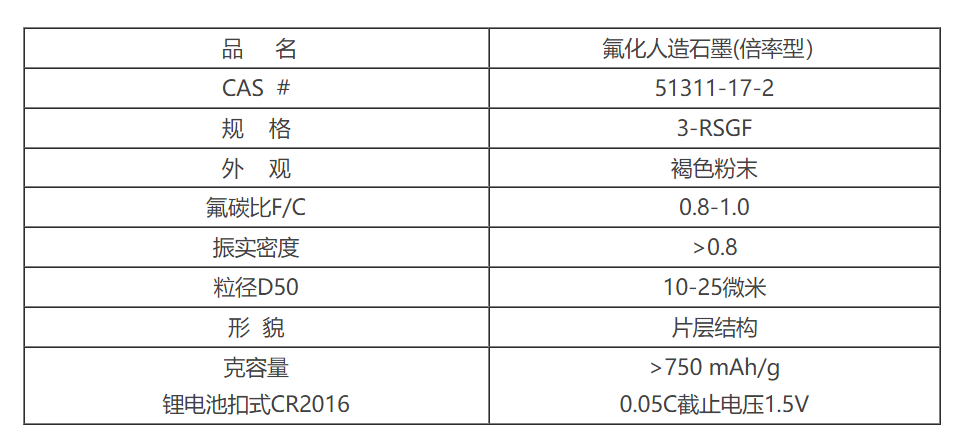

Section 3: Carbon fluoride specifications and types:

Our company independently develops and produces fluoro-graphite, fluoro-carbon, fluoro-carbon black, fluoro-carbon fiber, fluoro-nanocarbon fiber VGCF, fluoro-graphite micro-particles, fluoro-oxidized graphene, etc. These are solid powder materials with fluorine atoms intercalated at high temperatures. The surface fluoro-modification has a low degree of fluorination, and the white powder fluorocarbon ratio with high degree of fluorination can reach 1.2. Additionally, we accept customer-supplied materials for processing and cooperate in developing downstream product applications.

Four, Application Fields:

Battery Applications:Pure lithium fluorocarbon primary battery cathode material; lithium manganese battery cathode composite material;

Suitable for扣式、软包、圆柱及异形锂氟碳 primary batteries, these are lightweight, have low internal resistance, low self-discharge, and offer high power-to-energy ratio.

Industrial and Civil (emergency backup power for oil drilling platforms, marine rescue strobe lights, gastrointestinal microendoscopes, implantable medical devices, remote control devices, instruments and meters, tire pressure gauges).
