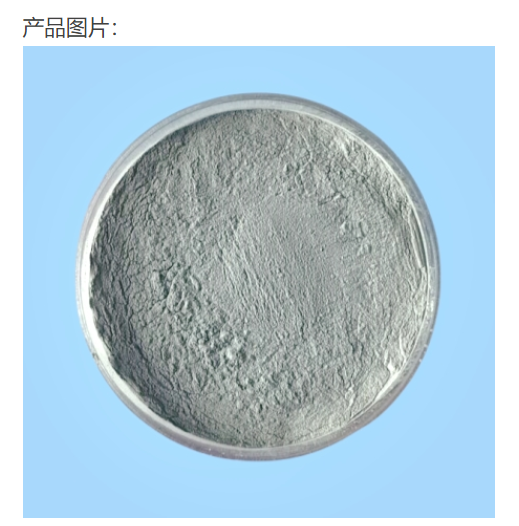

Characteristics: High purity carbon source selected, medium to high fluorination degree of fluorinated carbon, cost-effective, with an appearance of gray to light gray powder.

I. Product Introduction:

Fluorinated graphite is an intercalated compound produced by the direct reaction of carbon and fluorine. It is a novel functional material with very low surface free energy and good thermal and chemical stability. Fluorinated graphite is a solid, structural, non-stoichiometric fluorocarbon empirical formula (CFx)n. The reaction temperature depends on the type of raw material, the design of the reactor, the end use, and the desired degree of fluorination.

Section II: Technical Advantages:

Our company has independently developed an internal circulation process for fluorine gas application in fluorination reactors, utilizing a high-temperature synthesis method (dry process) to produce fluoro-graphite. We have developed a unique automatic control structure for the reactor, which boasts corrosion and heat resistance, as well as the ability to withstand high concentrations of fluorine gas atmosphere. This solves difficult problems in the fluoro-graphite process, making production safer. The products achieve various fluorocarbon ratios with controllable particle sizes, approaching the theoretical fluorocarbon ratio value (1.25); non-graphite fluorocarbons can reach 1.28.

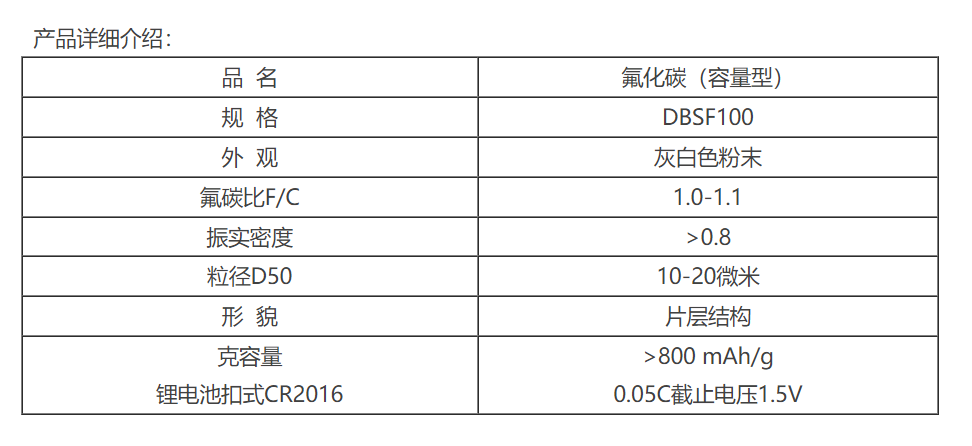

Section 3: Carbon Fluoride Specifications and Types:

Our company independently develops and produces fluoro-graphite, fluoro-carbon, fluoro-carbon black, fluoro-carbon fiber, fluoro-nanocarbon fiber VGCF, fluoro-graphite micro-particles, fluoro-oxidized graphene, etc. These are solid powder materials with fluorine atoms intercalated at high temperatures. Surface fluorination modification with low fluorination degree, and the white powder fluorocarbon ratio with high fluorination degree can reach 1.2. Additionally, we accept customer-supplied materials for processing and collaborate in developing downstream product applications.

Section 4: Application Fields:

Battery Applications:Pure lithium fluoroaluminate primary battery cathode material; lithium manganese battery cathode composite material.

Suitable for扣式、soft pack、cylindrical and irregular shape lithium fluoride carbon primary batteries, these are lightweight, have low internal resistance and low self-discharge, with high power-to-weight ratio and energy density.

Industrial and Civil (emergency backup power for oil drilling platforms, marine rescue strobe lights, gastrointestinal microendoscopes, implantable medical devices, remote control devices, instruments and meters, tire pressure gauges).
